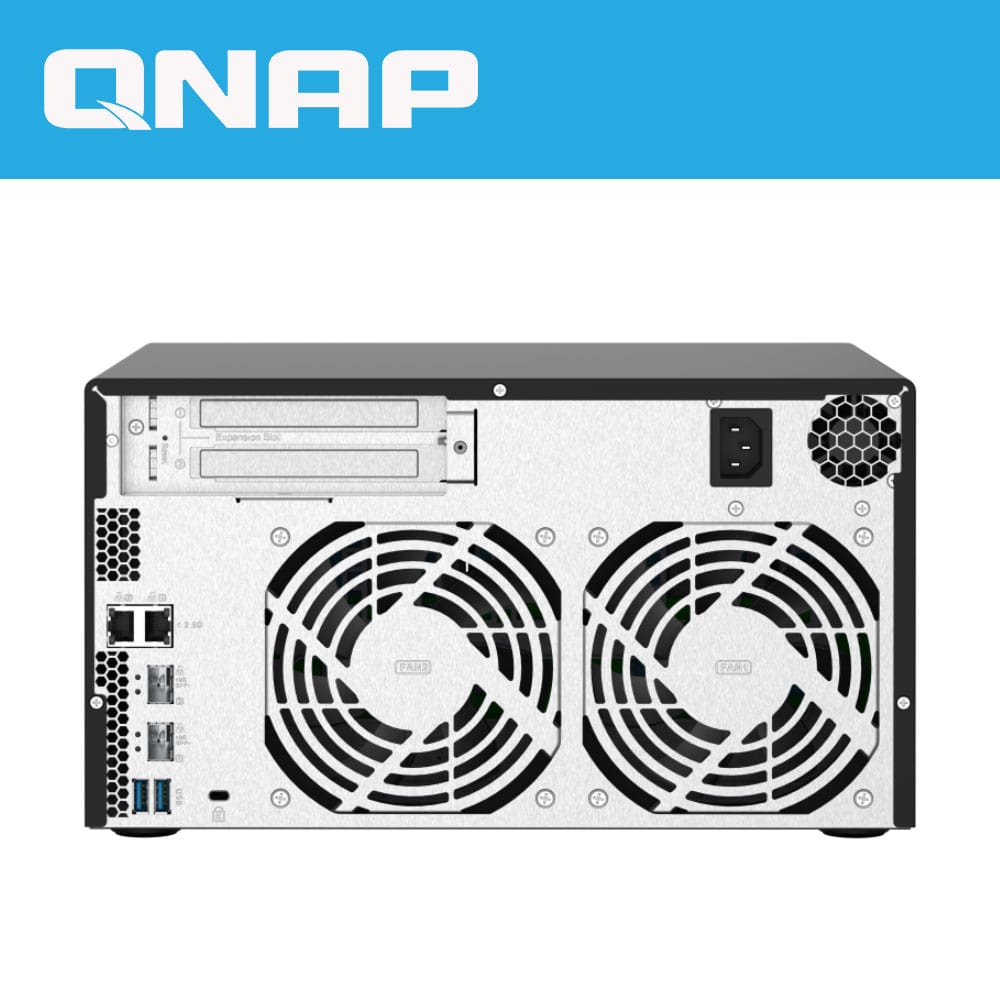

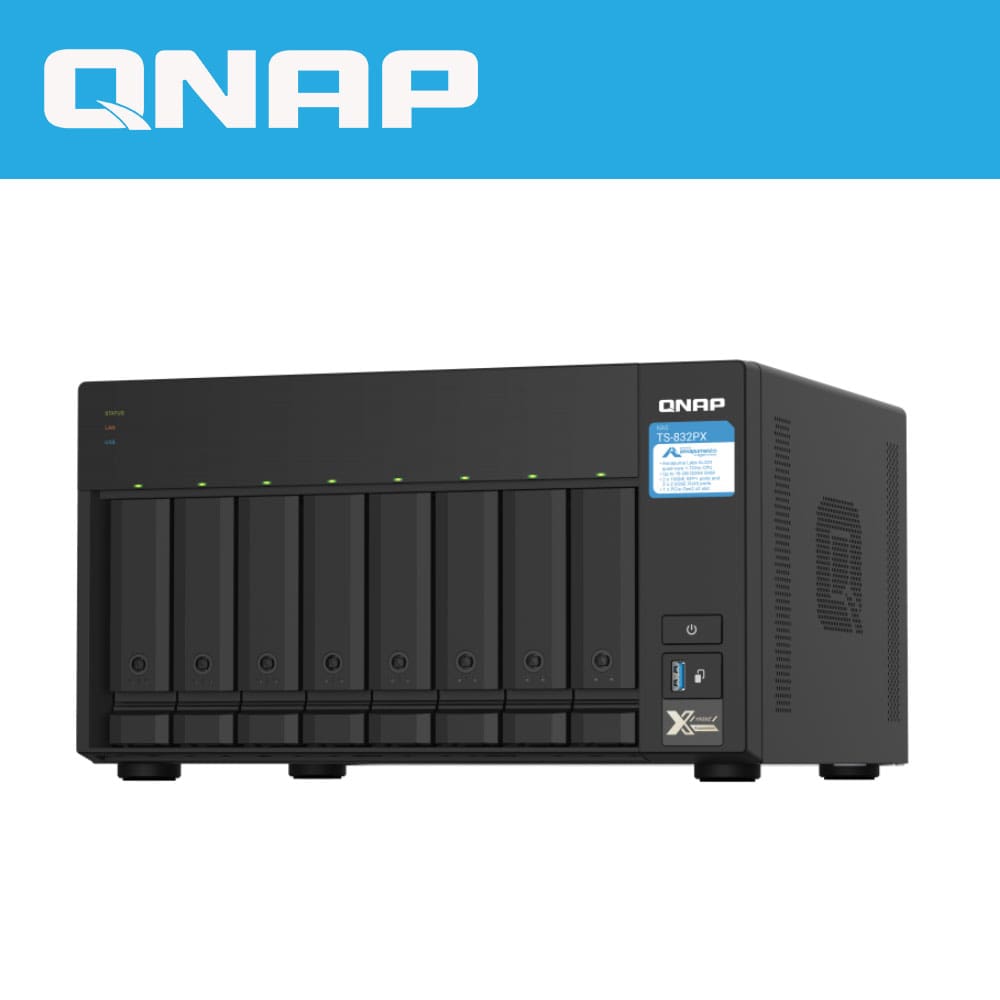

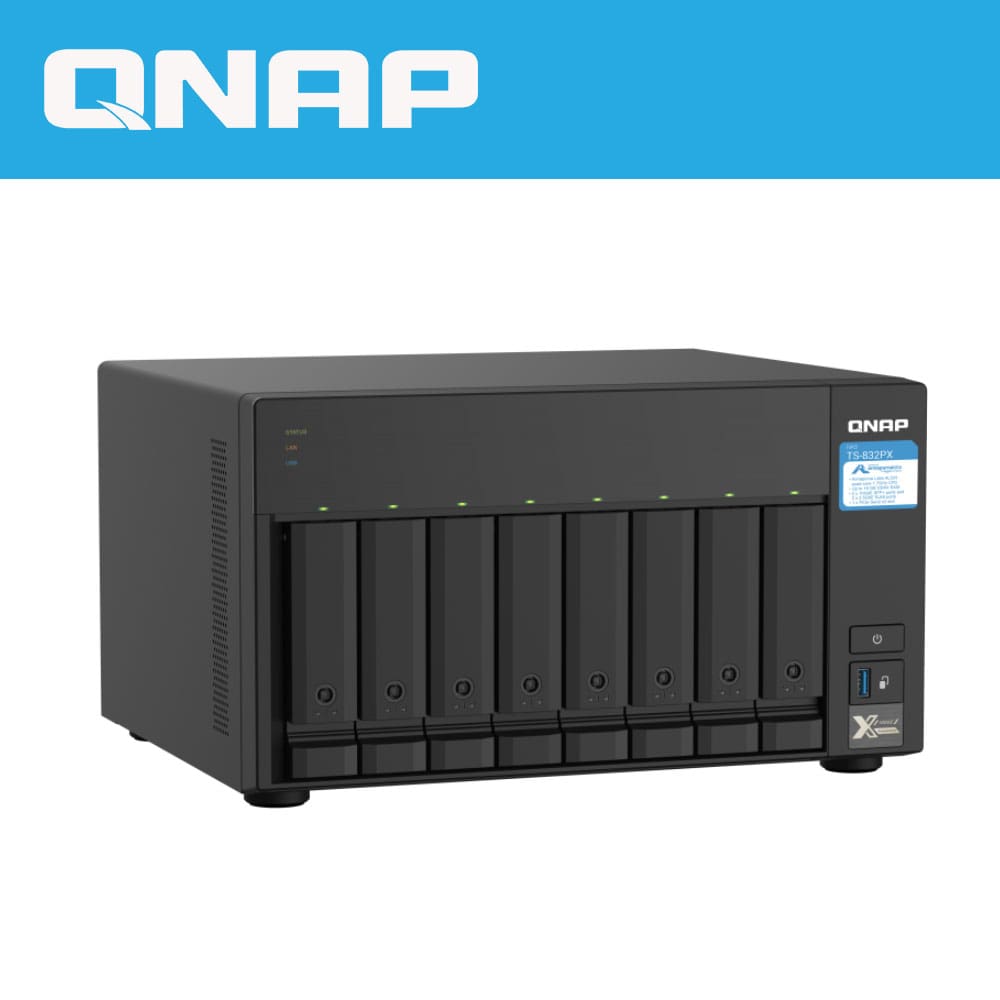

TS-832PX-4G

 5/5

Rp 20.100.000
sudah termasuk PPN 11%

Untuk Pemesanan Konfirmasi Terlebih Dahulu
● Processor : AL324 64-bit quad-core 1.7GHz, 4GB DDR4 SODIMM RAM (1 x 4GB, max 16GB)
● Memory : 8 x 3.5″/ 2.5″ drive slots, 2 x 10GbE SFP+ LAN, 2 x 2.5GbE LAN, 3 x USB 3.2 Gen1, 1 x PCIe 2.0 x2 slot,
● Slot Bay : 8 x 3.5-inch SATA 6Gb/s, 3Gb/s

Anda dapat membeli di online store

SKU QNAP-TS-832PX-4G Categories QNAP, QNAP Tags 4G, qnap, QNAP TL, TS-832PX, TS-832PX-4G

Description

High-speed 10GbE and 2.5GbE connectivity

The TS-832PX includes two 10GbE SFP+ and two 2.5GbE LAN RJ45 ports, providing out-of-the-box support for high-speed networking and supporting Port Trunking and Failover to reinforce your network infrastructure. QNAP also provide many other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches and network adapters, allowing you to build a budget-friendly high-speed network environment.

Learn More:10GbE High-speed Connectivity,2.5GbE Ethernet,QSW Switches

[vc_empty_space height=”30px”]

[vc_empty_space height=”50px”]

Extend NAS Functionality with a PCIe Card

With a PCIe Gen 2.0 slot, the TS-832PX provides flexibility in extending NAS functionality and potential applications. To optimize system performance, install a QNAP QM2 card for M.2 SATA/NVMe SSD caching/10GbE connectivity and use with Qtier for optimal system performance. You can also use a QNAP Wi-Fi 6 (802.11AX) network card to create a wireless environment. Additional options include QXG 5GbE/2.5GbE network adapter cards and USB 3.2 Gen 2 (10Gbps) cards. All these options ensure that the TS-832PX can be upgraded to fit future requirements.

Learn More:QM2,USB 3.2 Gen 1 to 5GbE Adapter,QXG network expansion card,USB 3.2 Gen 2 Expansion Card

[vc_empty_space height=”30px”]

[vc_empty_space height=”50px”]

Secure remote access to your QNAP NAS

Use myQNAPcloud Link to access, share, download, and manage files stored on an HQ-based NAS via the Internet. QNAP NAS also supports VPN services for remote workers to access the NAS and resources on a private network from the Internet. You can also use QVPN Device Client powered by QNAP’s proprietary QBelt protocol to easily connect to your TS-832PX and use measurement tools to know the speed of your VPN connections and connection history.

Learn More:myQNAPcloud Link,VPN Server,QVPN Device Client

Spesifikasi Hardware

CPU	AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 quad-core 1.7GHz processor
CPU Architecture	64-bit ARM
Floating Point Unit
Encryption Engine
System Memory	4 GB SODIMM DDR4(1 x 4 GB)
Maximum Memory	16 GB (1 x 16 GB)
Memory Slot	1 x SO-DIMM DDR4
Flash Memory	512 MB (Dual boot OS protection)
Drive Bay	8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility	3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
Hot-swappable
M.2 SSD Slot	Optional via a PCIe adapter
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (also support 10M)
10 Gigabit Ethernet Port	2 x 10GbE SFP+
Wake on LAN (WOL)	Only the 2.5GbE port
Jumbo Frame
PCIe Slot	1 Slot 1: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance.
USB 3.2 Gen 1 port	3
Form Factor	Tower
LED Indicators	System Status, LAN, USB, HDD1~8
Buttons	Power, Reset, USB Copy
Dimensions (HxWxD)	188.2 × 329.3 × 280.8 mm
Weight (Net)	6.38 kg
Weight (Gross)	8.61 kg
Operating temperature	0 – 40 °C (32°F – 104°F)
Storage Temperature	-20 – 70°C (-4°F – 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	250W, 100-240V AC, 50/60Hz, 3.5A
Power Consumption: HDD Sleep Mode	27.949 W
Power Consumption: Operating Mode, Typical	50.858 W Tested with drives fully populated.
Fan	System fan: 2 x 120mm, 12VDC CPU fan: 1 x 60mm
Sound Level	19.6 db(A)
System Warning	Voice prompts or Buzzer
Kensington Security Slot

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
