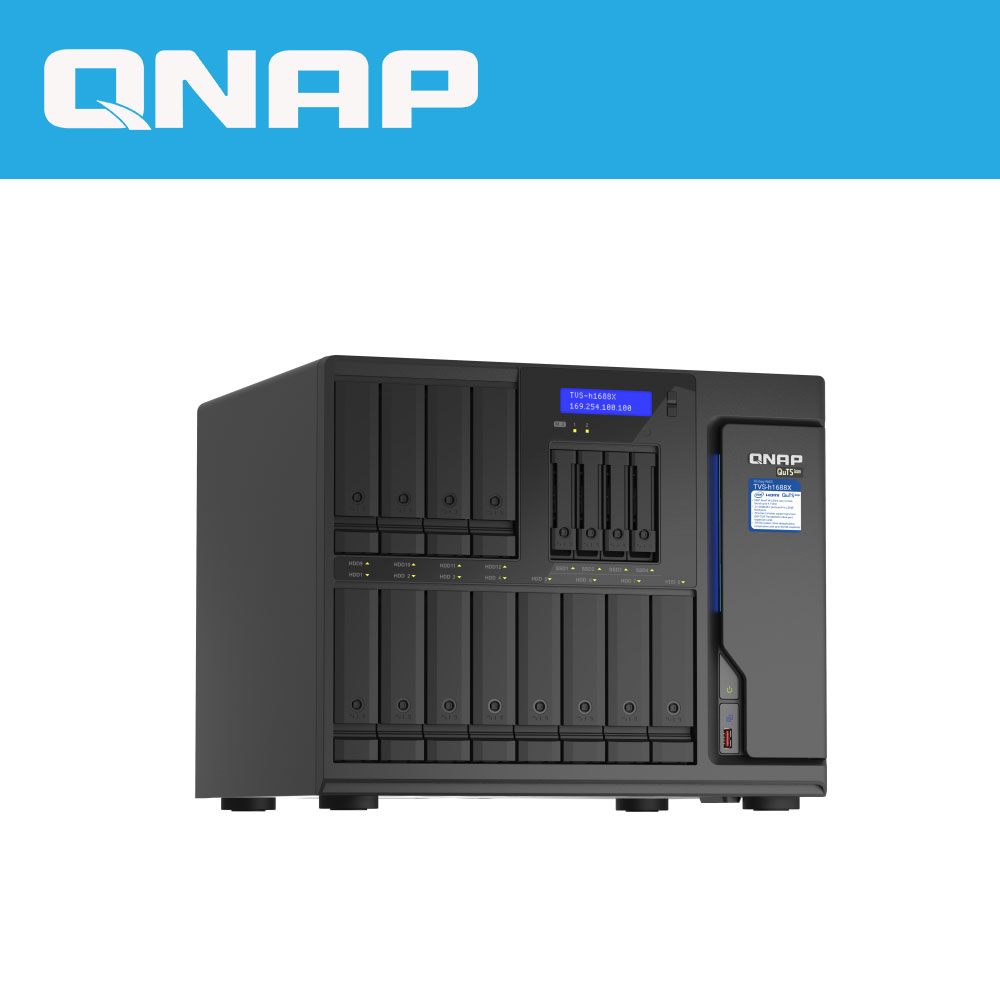

The high-capacity TVS-h1688X features a powerful Intel® Xeon® W processor and allows for installing two QNAP QXP-T32P Thunderbolt™ 3 PCIe expansion cards (sold separately) to attain four Thunderbolt™ 3 ports, making it a perfect match for Thunderbolt™-equipped Mac® and Windows® users for high-speed media collaboration. The built-in 10GbE and 2.5GbE connectivity supports Port Trunking and failover to further satisfy bandwidth and reliability demanding business applications. Running the ZFS-based QuTS hero operating system, the TVS-h1688X supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and read/write cache technologies, helping your business achieve reliable service-level agreement performance, from creative workflows to file server, virtualization server, and efficient file backup and recovery applications.
[vc_empty_space height=”50px”]
[vc_empty_space height=”50px”]
[vc_empty_space height=”30px”]
[vc_empty_space height=”50px”]
Direct 4K HDMI output
The TVS-h1688X features Intel® UHD Graphics P630 that supports hardware decoding and real-time transcoding. The HDMI output supports up to 4K (4096 x 2160p) @30Hz, providing great benefits for applications like video production/editing, industrial design and professional photography that demand on-image resolution and color realism as well as intensive media storage, transfer and display. By connecting the TVS-h1688X to an HDMI display, you can directly watch multimedia content saved on the NAS with QNAP RM-IR004 remote control (sold separately).
[vc_empty_space height=”30px”]
[vc_empty_space height=”50px”]
SPESIFIKASI
TVS-h1688X-W1250-32G
CPU | Intel® Xeon® W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz) |
CPU Architecture | 64-bit x86 |
Graphic Processors | Intel® UHD Graphics P630 |
Floating Point Unit | |
Encryption Engine | (AES-NI) |
Hardware-accelerated Transcoding | |
System Memory | 32GB ECC UDIMM DDR4 (2 x 16 GB) |
Maximum Memory | 128 GB (4 x 32 GB) |
Memory Slot | 4 x Long-DIMM DDR4 For dual-DIMM configurations, you must use a pair of identical DDR4 modules. |
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD. For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: |
Hot-swappable | |
M.2 SSD Slot | 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots |
SSD Cache Acceleration Support | |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 (also support 10M) |
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/1G) |
25 Gigabit Ethernet Port | Optional via an adapter |
Wake on LAN (WOL) | Only the 2.5GbE port |
Jumbo Frame | |
Thunderbolt Port | Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter |
PCIe Slot | 3 Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x4 Slot 3: PCIe Gen3 x4 *Slot 1 is preinstalled with a 2-port 10GbE network adapter. |
USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C 4 x Type-A |
HDMI Output | 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
Audio Input | – (No longer available on units manufactured on or after 2021/1/1) |
Audio Output | – (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1) |
Form Factor | Tower |
LED Indicators | System status, LAN, USB, Disk 1~16, M.2 SSD 1~2 |
LCD Display/ Button | |
Buttons | Power, Reset, USB Auto Copy |
Dimensions (HxWxD) | 303.84 × 369.89 × 319.8 mm |
Weight (Net) | 13.41 kg |
Weight (Gross) | 16.3 kg |
Operating temperature | 0 – 40°C (32°F – 104°F) |
Storage Temperature | -20 – 70°C (-4°F – 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 550W PSU, 100~240V |
Power Consumption: HDD Sleep Mode | 91.26 W |
Power Consumption: Operating Mode, Typical | 108.67 W Tested with drives fully populated. |
Fan | System fan: 3 x 80mm, 12VDC CPU fan: 2 x 97mm, 12VDC |
Sound Level | 25.8 db(A) |
System Warning | Buzzer |
Kensington Security Slot |
[vc_empty_space height=”30px”]
[vc_empty_space height=”50px”]
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
