Digitalsense

TL-D800C

5/5

Rp 9.200.000
sudah termasuk PPN 11%

Untuk Pemesanan Konfirmasi Terlebih Dahulu
● Processor : Desktop USB-C 3.1 Gen2 10Gbps JBOD
● Memory : expansion unit with a 1-meter USB-C to USB-A 3.1 Gen2 cable.
● Slot Bay : 8 x 3.5-inch SATA 6Gb/s, 3Gb/s



Anda dapat membeli di online store

SKU QNAP-TL-D800S-1 Categories , Tags , , , , , ,

Description

[vc_row][vc_column][vc_column_text]

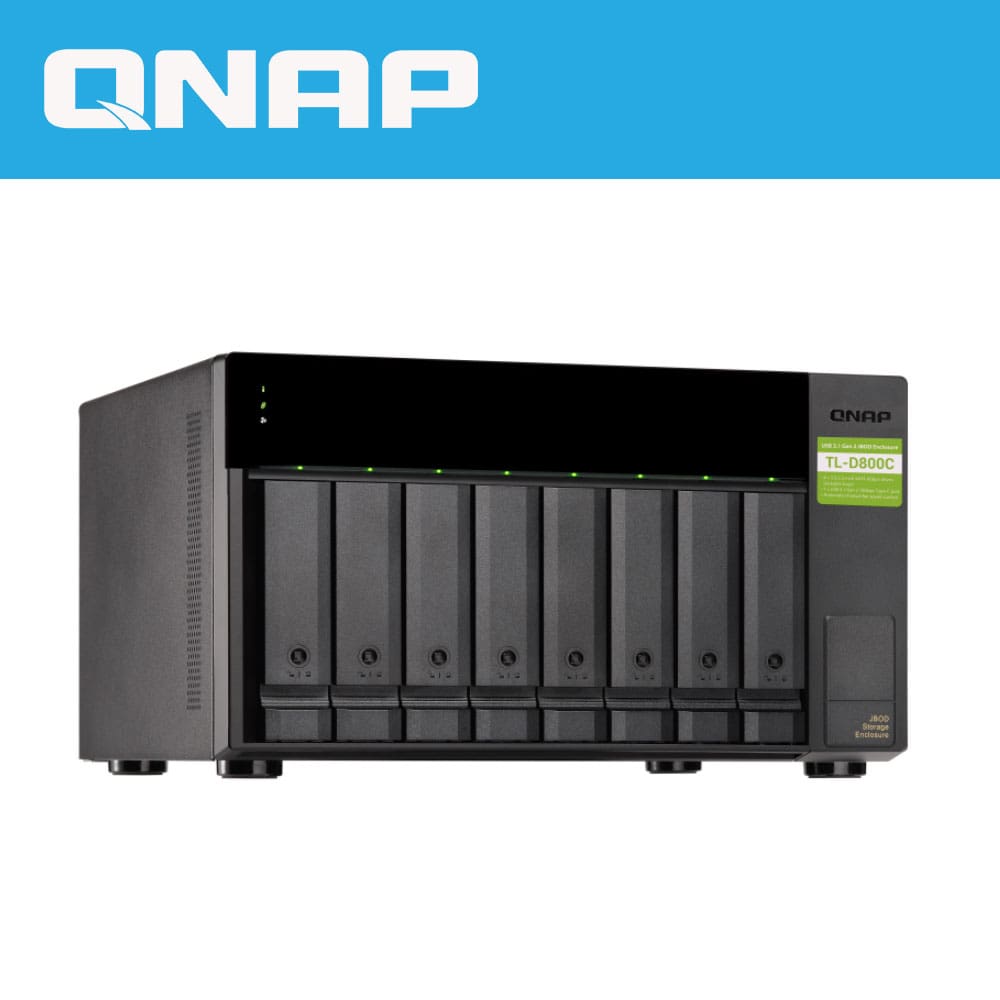

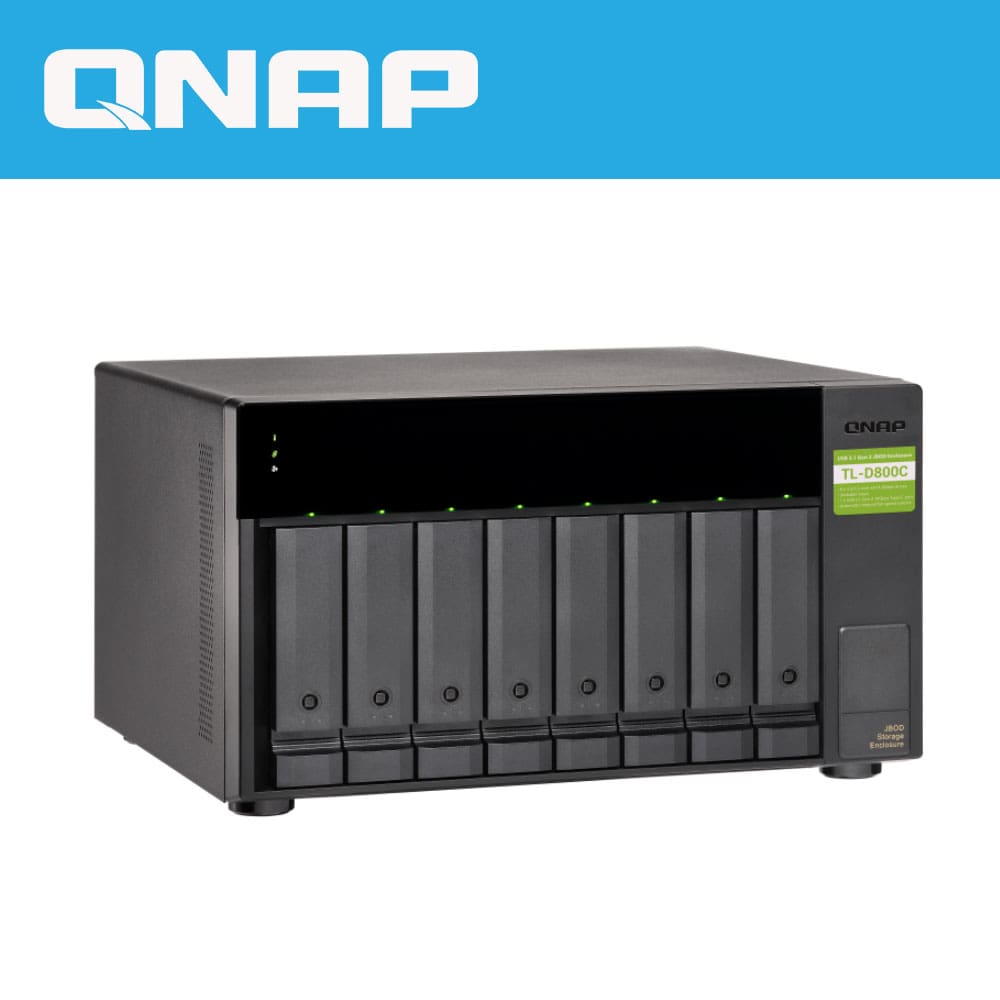

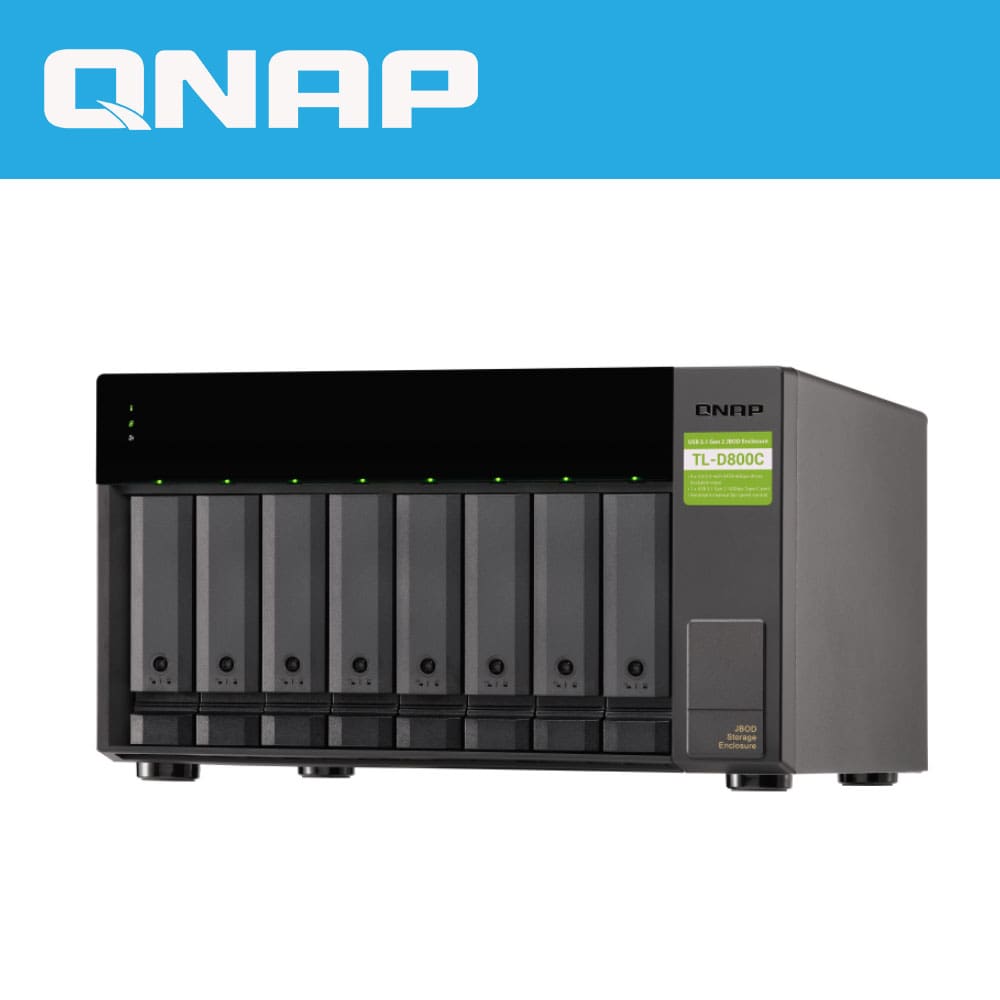

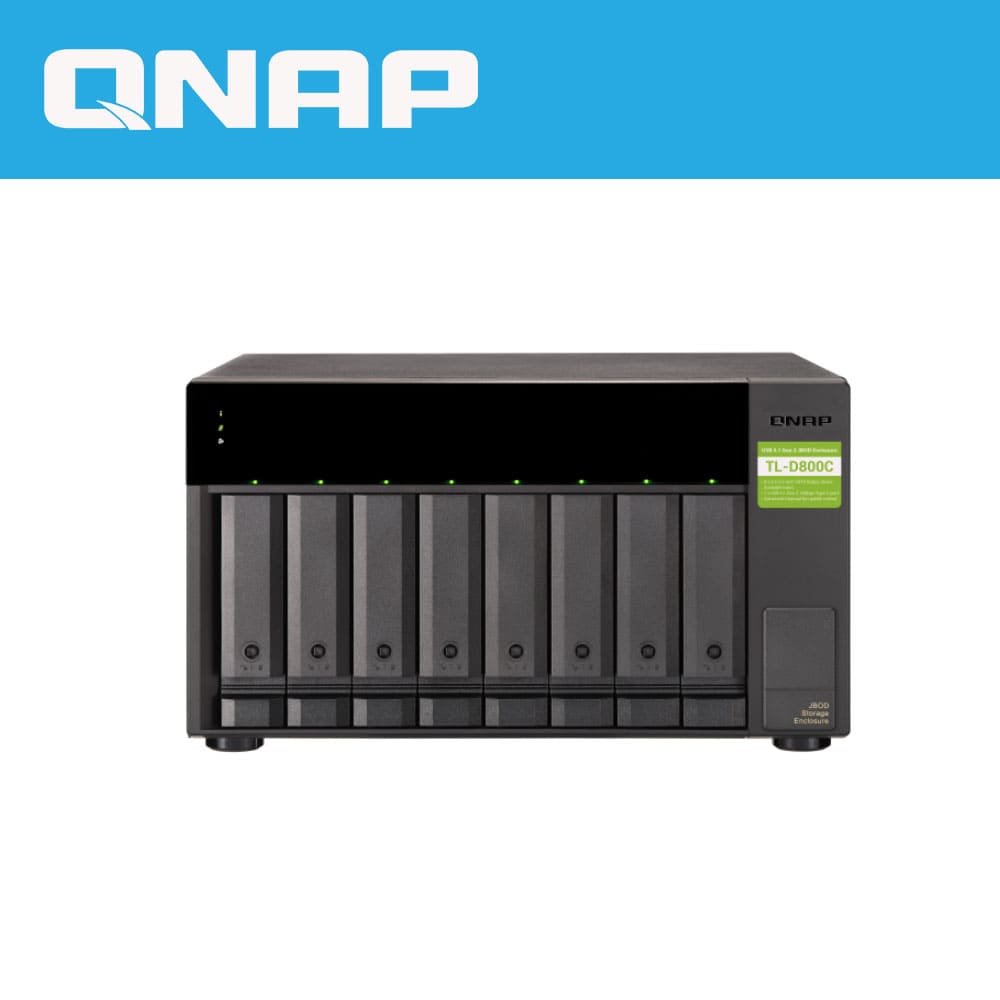

TL-D800C (USB)
USB 3.2 Gen2 Type-C high-capacity JBOD storage enclosure

The TL-D800C JBOD storage enclosure allows you to back up and expand your QNAP NAS. The TL-D800C features eight 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.

Note:
1. TL-D800C only supports devices with USB 3.2 Gen1 (or above) port.
2. QNAP recommends following the standard procedure to connect or disconnect the TL-D800C. For more information, please see the TL-D800C user manual.
3. The TL-D800C can only be used as an individual storage pool or volume on the NAS. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-D800C.
4. The TL-D800C only supports QNAP NAS running on QTS 4.4.2 (or above) or QTS hero operating system.
5. The TL-D800C doesn’t support ASM1142 USB controller IC based USB ports and PCIe expansion cards (e.g. QNAP USB-U31A2P01 expansion card).

  • USB 3.2 Gen2 Type-C connectivity* provides up to 10 Gb/s data transfer speeds. The port can support USB Type-A to Type-C connection or Thunderbolt 3 Type-C connection using different cables.

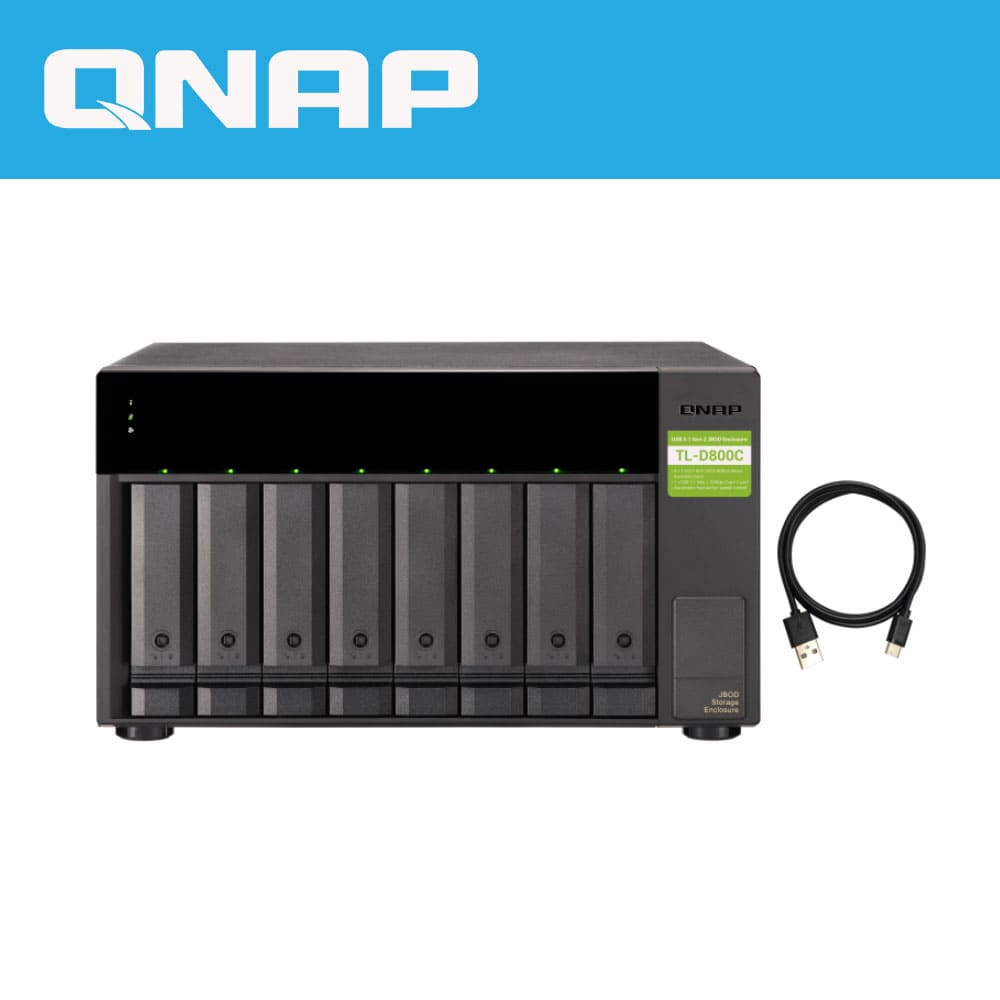

    * The package includes one USB 3.2 Gen2 Type-C to Type-A cable. Maximum 1M USB cable is recommended.

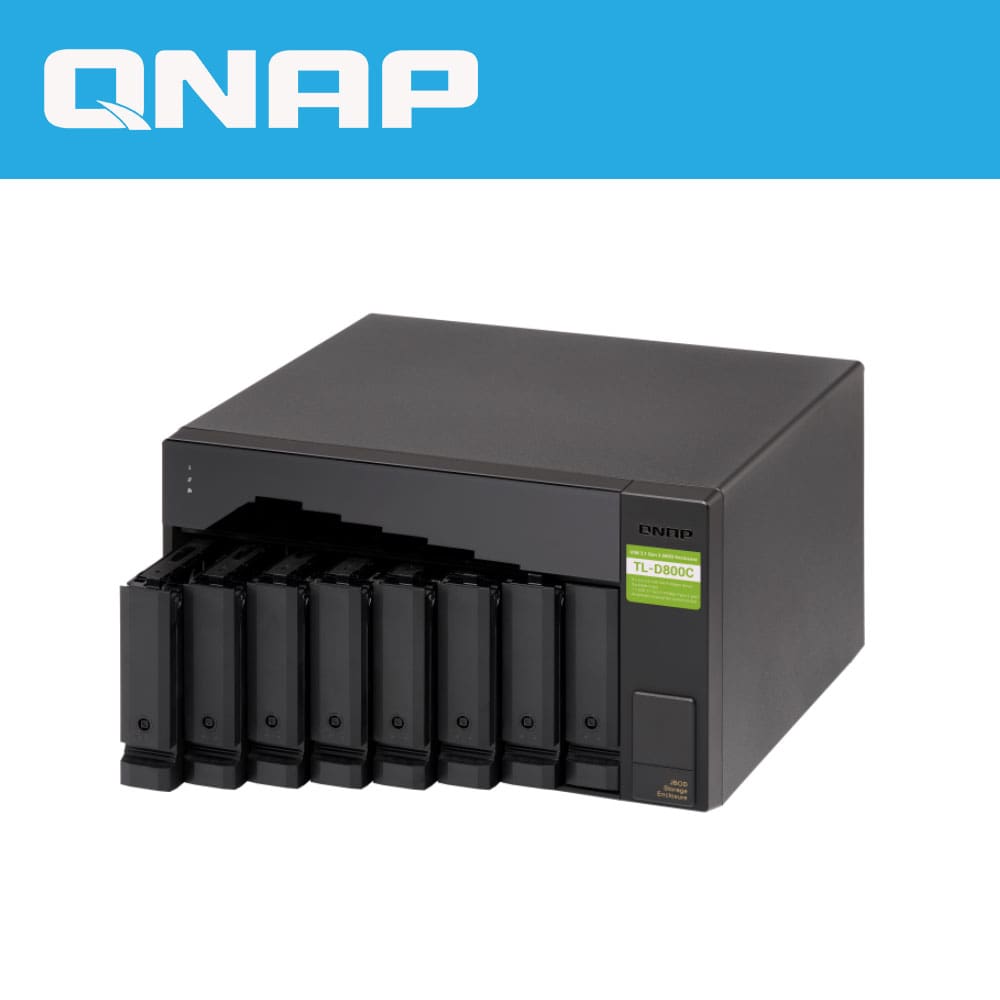

  • Lockable hard drive trays prevent accidental drive removal.

  • Supports SATA 6Gb/s drives for reliable read/write performance.

Use TL-D800C as a high-capacity disk drive reader by setting up single disk mode

You can treat each disk in your TL-D800C as an individual storage space, and also use it as a removable drive. It can function like a high-capacity disk drive reader. When one of disk reaches data storage limitation, you can remove it and put it into a dry box. Then swap a different disk into theTL-D800C empty drive slot. After that, you can install the disk that reached full data capacity into the TL-D800C and connect it with a NAS for direct file access.

Note: The operating system of the destination host should support the drive file system for file access. For example, NTFS (for Windows), HFS+ (for Mac), EXT4 (for Ubuntu or QNAP NAS), exFAT (for Windows, Mac, Ubuntu, and QNAP NAS) etc.

Versatile usage scenarios to meet storage expansion needs

The TL-D800C meets many storage expansion requirements for the home and office. Below is a list of potential usage scenarios:

Drive Bay8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Audio Alert On/Off Switch
Form FactorTower
Host Interface1 x USB 3.2 Gen 2 Type-C
LED IndicatorsHDD 1-8, Status, Link, Fan error
ButtonsPower switch
Dimensions (HxWxD)188.2 × 329.3 × 281.4 mm
Weight (Net)6.18 kg
Weight (Gross)7.54 kg
Max. number of HDDs/SSDs supported8
Hard Drive Type3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Operating temperature0 – 40 °C (32°F – 104°F)
Storage Temperature-20 – 70°C (-4°F – 158°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit250W PSU, 100 – 240V
Power Consumption: Operating Mode, Typical48.4 W

Tested with drives fully populated.
Fan Mode Switch (Auto, high, medium, low)

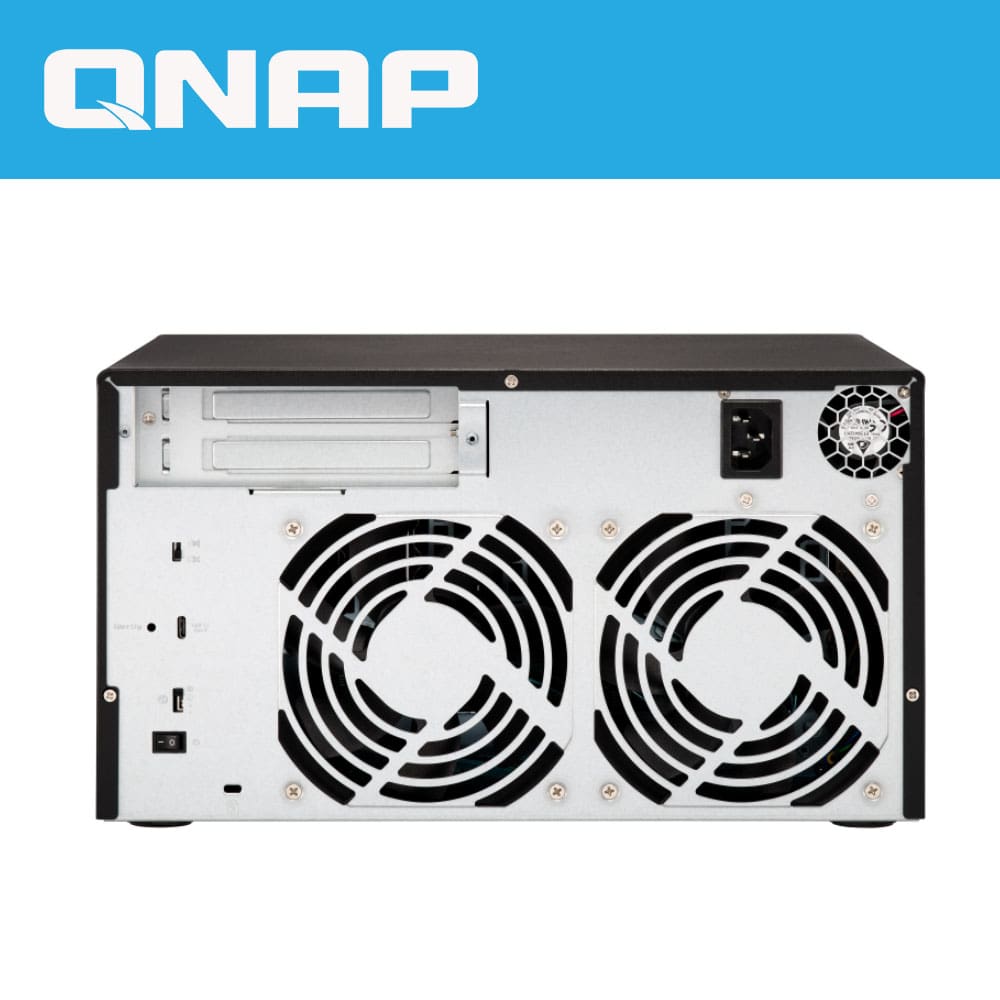

Fan2 x 120mm, 12VDC
Sound Level26.2 db(A)
System WarningBuzzer
Kensington Security Slot
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
