The TL-R1220Sep-RP SAS 12Gb/s storage expansion enclosure is designed for expanding the storage space of your QTS or QuTS hero NAS. Up to sixteen expansion enclosures can be daisy-chained via high-speed mini SAS HD cables to support up to 3.4PB raw capacity, ideal for archiving/backing up virtualization applications, surveillance recordings, large data, or multimedia. Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1220Sep-RP consolidates 6Gb/s infrastructure into 12Gb/s. With four mini SAS HD SFF-8644 Wide Ports, the TL-R1220Sep-RP delivers up to 192Gbps transfer speed when connected to a single host. When connected to a QTS/QuTS hero NAS that supports multipath routing, the TL-R1220Sep-RP can achieve smoother data transmission and continuous system operation.
Note: The QNAP NAS requires QTS 4.5.1 / QuTS hero h4.5.1 (or later) with SAS ports or with a QXP PCIe SAS storage expansion card installed. Check PCIe SAS card compatibility
Supports SAS DataBolt™ technology, delivers 12Gb/s speed using existing 6Gb/s infrastructure
Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1220Sep-RP features an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS. Whether the TL-R1220Sep-RP uses 12Gb/s or 6Gb/s drives, the NAS host will transfer data to the TL-R1220Sep-RP at 12Gb/s, allowing you benefit from high-speed 12Gb/s SAS transmission with existing 6Gb/s infrastructure.
Note: The QNAP host NAS requires QTS 4.5.1 / QuTS hero h4.5.1 (or later) with SAS ports or with a QXP PCIe a PCIe SAS storage expansion card installed. Check PCIe SAS card compatibility
Connect up to 16 JBODs, support up to 3.4PB raw capacity
The TL-R1220Sep-RP has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. Up to sixteen TL-R1220Sep-RP can be daisy-chained to achieve a raw capacity of up to 3.4PB.
1. Use the CAB-SAS10M-8644-8088 12Gb/s to 6Gb/s external cable to connect to SAS NAS / REXP expansion enclosures and 6 Gb/s SAS HBA.
2. The host NAS requires one QXP-1620S-B3616W SAS card to daisy chain sixteen JBODs with single path routing. Using multipath routing with link aggregation enabled, the host NAS with one QXP-1620S-B3616W SAS card can daisy chain four JBODs; the host NAS with two QXP-1620S-B3616W SAS cards can daisy chain eight JBODs.

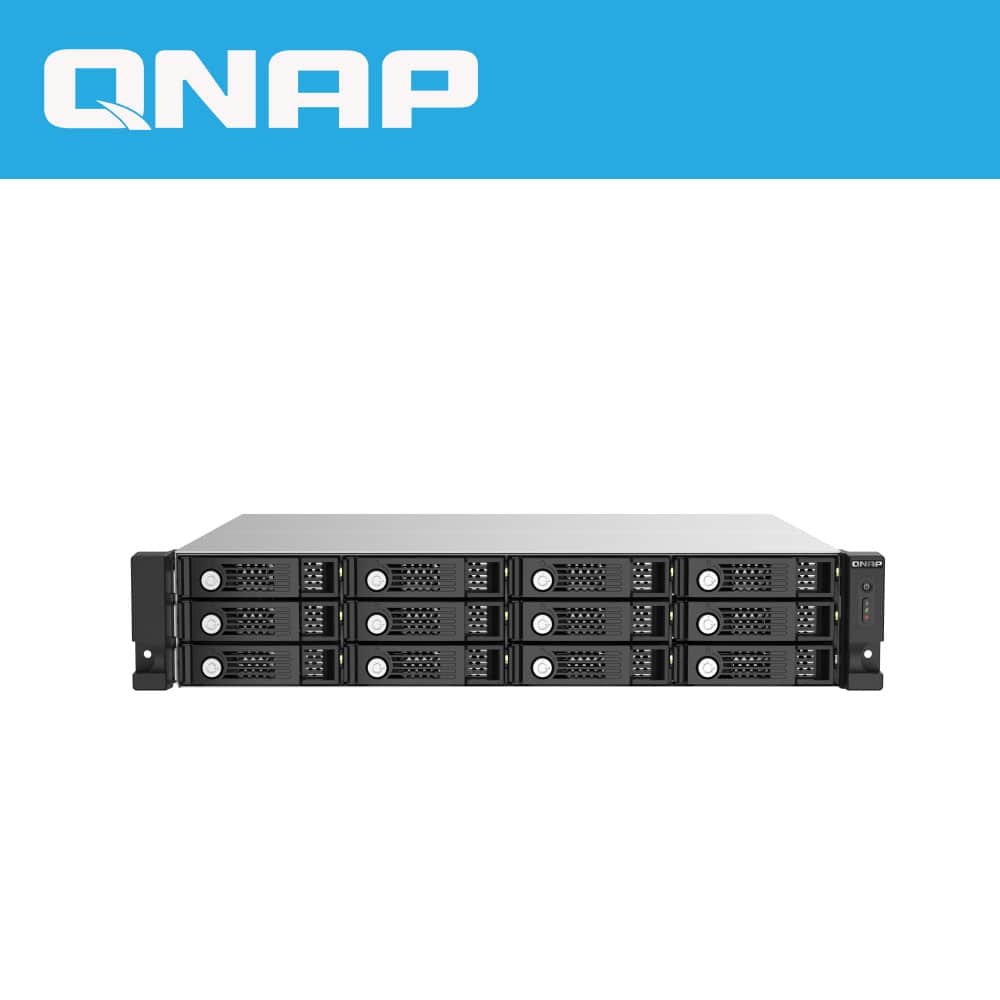

|Drive Bay||12 x 3.5-inch SAS 12Gb/s, SAS/SATA 6Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
|Drive Compatibility||3.5-inch bays:
3.5-inch SAS/SATA hard disk drives
2.5-inch SAS/SATA hard disk drives
2.5-inch SAS/SATA solid state drives

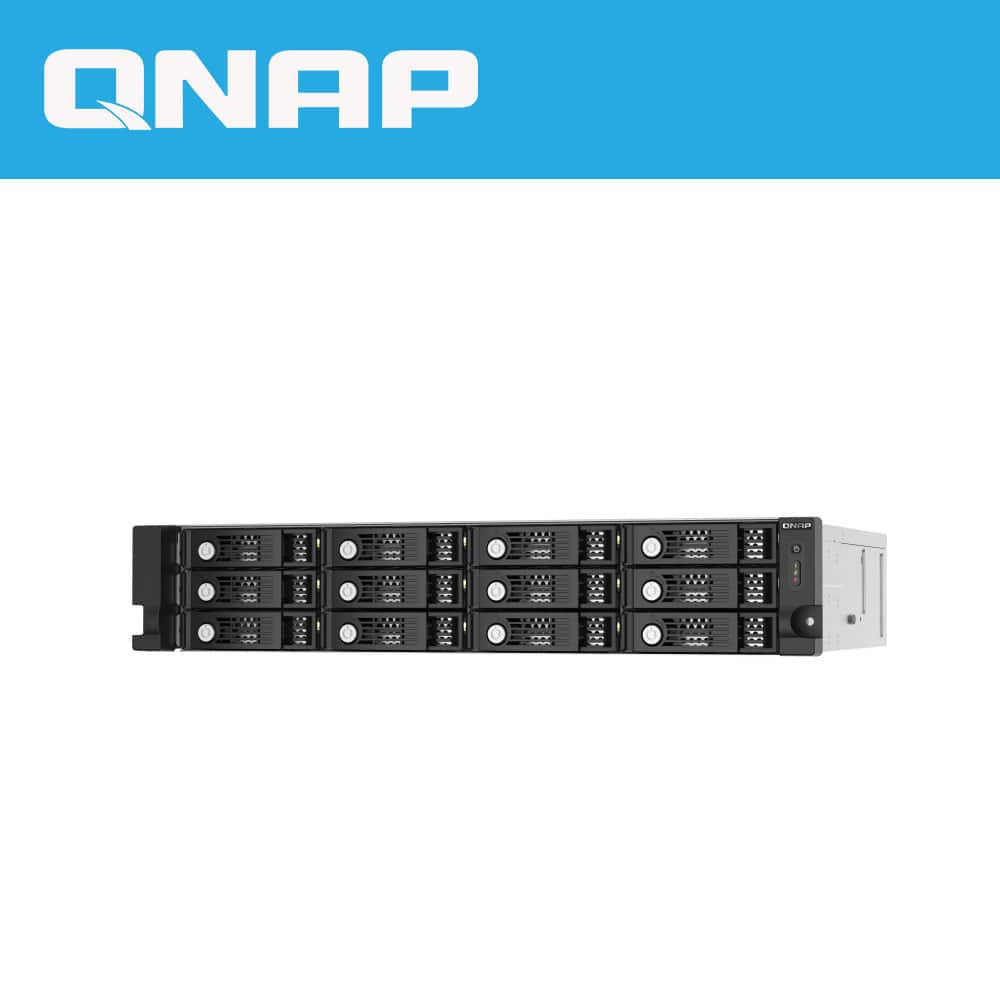

|Form Factor||2U Rackmount|

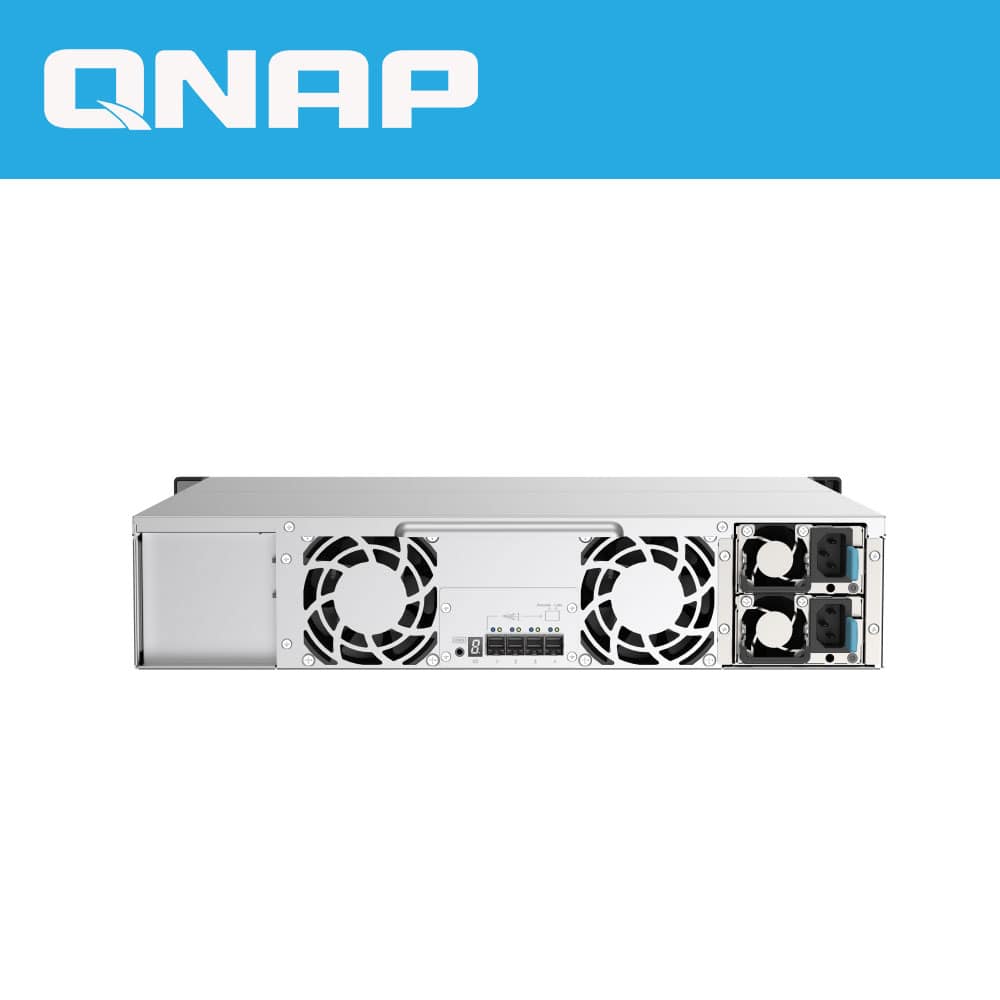

|Host Interface||4 x 12Gb/s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644)|
|LED Indicators||Front panel: HDD 1-12, Power, Status, Link, Fan error
Rear panel: SAS connector, Enclosure ID
|Dimensions (HxWxD)||88.65 × 482.2 × 423.8 mm|
|Weight (Net)||9.19 kg|
|Weight (Gross)||14.03 kg|
|Max. number of HDDs/SSDs supported||12|
|Hard Drive Type||3.5″ or 2.5″ SAS 12Gb/s, SAS/SATA 6Gb/s and 3Gb/s drives|
|Operating temperature||0 – 40 °C (32°F – 104°F)|
|Storage Temperature||-20 – 70°C (-4°F – 158°F)|
|Relative Humidity||5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)|
|Power Supply Unit||300W (x2), 100 – 240V|
|Power Consumption: Operating Mode, Typical||163.38 W
Tested with drives fully populated.
|Fan||2 x 80mm, 12VDC|
|Sound Level||33.9 db(A)|
|Management||Managed via QNAP QTS / QuTS hero OS
1. Supports disk S.M.A.R.T. information
2. RAID expansion enclosure identifier
3. Locate RAID expansion enclosures
4. Locate hard disks on RAID expansion enclosure
5. Smart fan control by detecting system and hard drive temperature
6. In-band SAS firmware update
