The QSW-M408S is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+ ports and eight Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M408S offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution that is usable even by non-IT professionals. With its high performance, user-friendly management features and desktop size, the QSW-M408S allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance security.

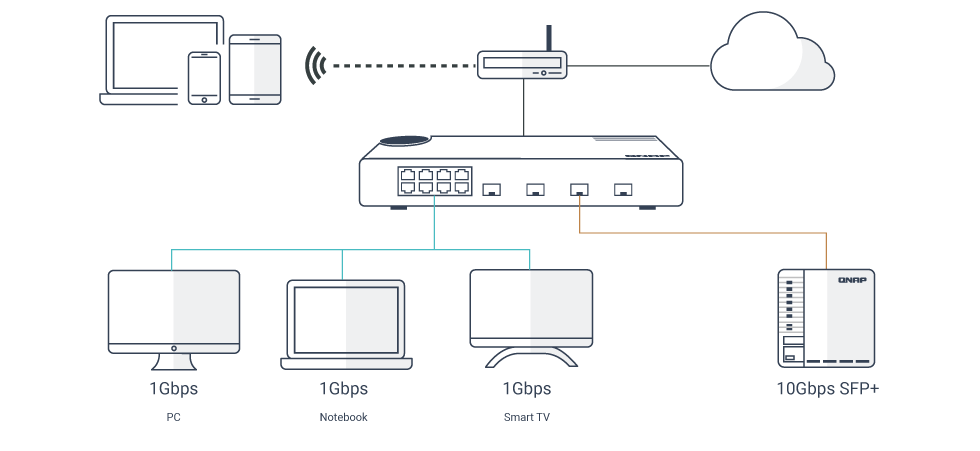

Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M408S provides four 10GbE SFP+ ports and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-M408S is 96Gbps, guaranteeing the full potential of each port.
Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP.

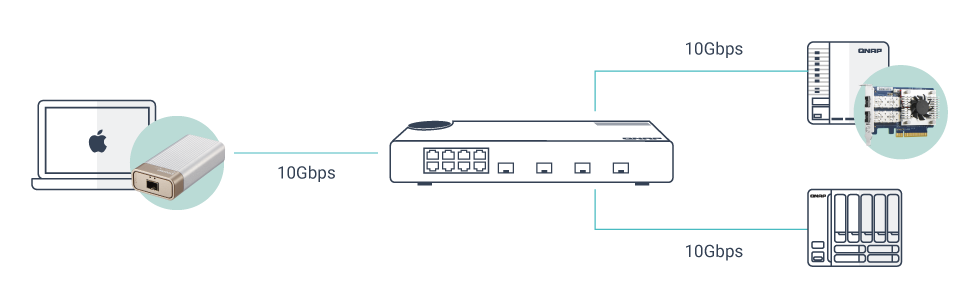

Improve team productivity with a 5GbE/ 10GbE High-Speed Network
From NAS with built-in 10GbE SFP+ and 10GBASE-T ports, or NAS with PCIe slots that support 10GbE/5GbE/2.5GbE network adapters, QNAP has led the industry in 10GbE adoption. Other high-speed network solutions from QNAP include Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters. These can all be used with the QSW-M408S to create a comprehensive high-speed network environment for boosting the performance of photo/video editing, virtualization, large-file data transfers, and other bandwidth-demanding tasks.
Learn More:QNAP 10GbE NAS Solution,QNAP 10GbE Network Expansion Card,QNAP USB 3.2 Gen 1 to 5GbE Network Adapter,QNAP Thunderbolt 3 to 10GbE Network Adapter
Desktop size for easy use in offices

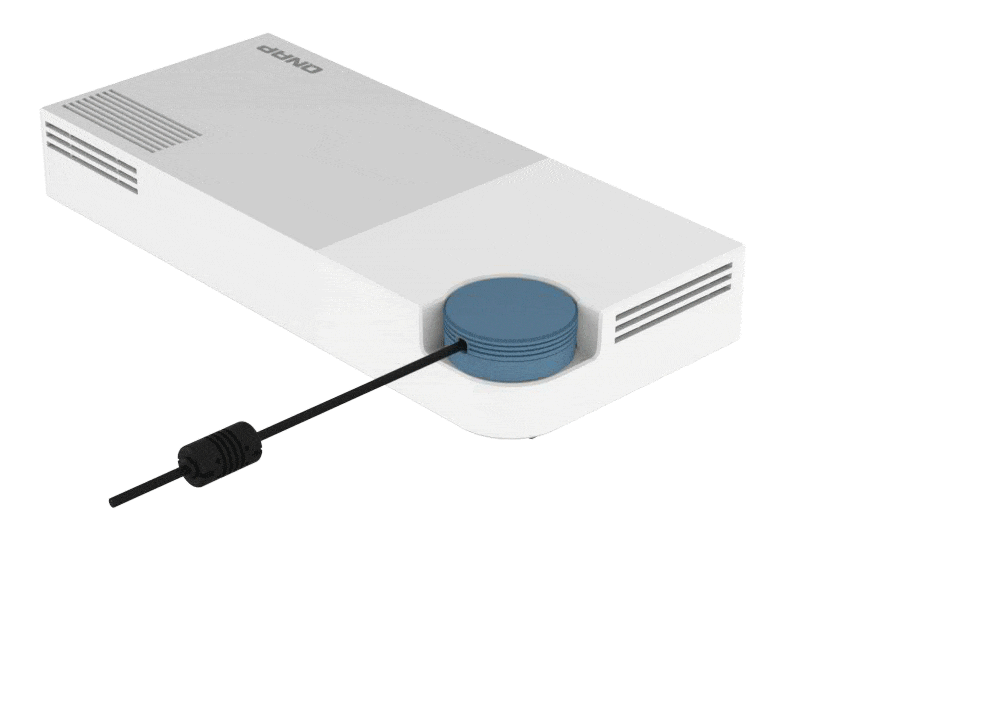

With a compact and modern design, the QSW-M408S fits perfectly alongside other devices in modern digital offices. Featuring a delicate white or textured surface design, the QSW-M408S helps users to easily identify each port. The flexible DC power connector also assists in universally deploying the QSW-M408S. Being fully plug-and-play, simply connect the QSW-M408S to your devices and it will do the rest.
- Download Datasheet
- Download Datasheet
- Download Datasheet
|Management Type||Web Managed|
|Number of Ports||12|
|Management Port||1 x 1GbE RJ45|
|Power Supply Description||Adapter|
|Max. Power Consumption||12.17 W|
|Input Power Type||AC|
|Input Voltage Range||100-240VAC, 50/60 Hz|
|MAC Address Table||16K|
|Total Non-Blocking Throughput||48Gbps|
|Energy Efficient Ethernet (IEEE 802.3az complaint)|
|Fan||PWM double ball bearing fan x 1|
|Supported Standards||IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of Service
|LED Indicators||Per Port: Speed/Link/Activity
Per System: Power/Status
|Dimensions (HxWxD)||42.5 × 290 × 127 mm|
|Weight (Net)||1.145 kg|
|Weight (Gross)||1.565 kg|
|Operating Temperature||0°C to 40°C (32°F to 104°F)|
|Relative Humidity||5~95% Non-condensing|
|Certifications||CE, FCC, VCCI, BSMI|
|Electromagnetic Compliance||CLASS A|
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
