Description
The QSW-M2108-2C is a Layer 2 Web Managed Switch with two 10GbE SFP+/RJ45 combo ports and eight 2.5 Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M2108-2C offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution that is usable even by non-IT professionals. The QSW-M2108-2C is compatible with 10GbE and NBASE-T technologies, supporting up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with existing Cat 5e and 6a cables. With high performance, user-friendly management, and desktop form factor, the QSW-M2108-2C enables cost-effective upgrading to 2.5GbE or 10GbE networking while optimizing bandwidth and ensuring secure network maintenance.
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M2108-2C provides two 10GbE SFP+/RJ45 combo ports and eight 2.5 Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6 (or better) cabling. The switching capacity of the QSW-M2108-2C is 80Gbps, guaranteeing the full potential of each port.
Note: 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G / 5G / 2.5G / 1G / 100M).

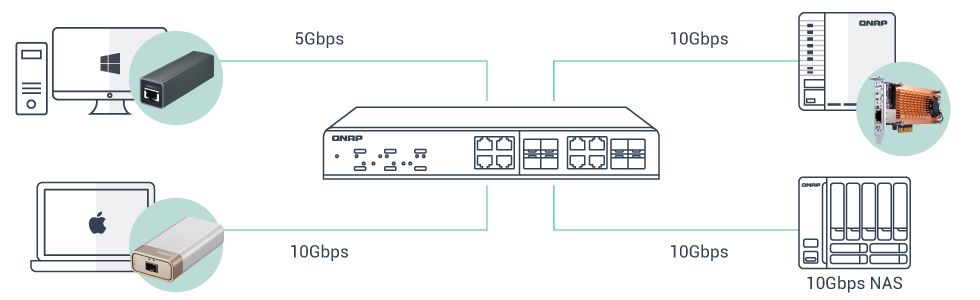

Fully embrace High-Speed Networking with QNAP!
From NAS with built-in 10GbE SFP+ and 10GBASE-T ports, or NAS with PCIe slots that support 10GbE network adapters, QNAP has led the industry in 10GbE adoption. Other high-speed network solutions from QNAP include Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters. These can all be used with the QSW-M1204-4C to create a comprehensive high-speed network environment for boosting the performance of photo/video editing, virtualization, large-file data transfers, and other bandwidth-demanding tasks.
Learn More:QNAP 10GbE NAS Solution,QNAP 10GbE Network Expansion Card,QNAP USB 3.2 Gen 1 to 5GbE Network Adapter,QNAP Thunderbolt 3 to 10GbE Network Adapter
Flexible deployment combo ports and 10GbE / NBASE-T
The QSW-M2108-2C is compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing Cat 5e and Cat 6a cables. The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable type and lengths, different speeds can be achieved for faster, more efficient data transfer.
Note: If the distance between the switch and the device is less than 45 meters (148 feet), a Cat 6 cable can be used to achieve 10Gb/s speeds.
Desktop form factor for easy use in offices
With a compact and modern design, the QSW-M2108-2C stands out with its delicate textured surface design. The flexible DC power connector enables universal deployment of the QSW-M2108-2C and each port can be easily identified. Being fully plug-and-play, devices can be simply connected to the QSW-M2108-2C and immediately used.
QSW-M2108-2C
| Management Type | Web Managed |
| Number of Ports | 10 |
| 10GbE SFP+/RJ45 Combo Ports | 2 |
| 2.5GbE (RJ45) | 8 |
| Management Port | 1 x 1GbE RJ45 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 12.17 W |
| Input Power Type | DC |
| Input Voltage Range | 12V |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 40Gbps |
| Switching Capacity | 80Gbps |
| Management Interface | Web |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | |
| Fan | PWM double ball bearing fan x 1 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3az Energy Efficient Ethernet (IEEE 802.1p Class of Service) |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Buttons | Reset button |
| Dimensions (HxWxD) | 42.5 x 290 x 127 mm |
| Weight (Net) | 1.12 kg |
| Weight (Gross) | 1.54 kg |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS B |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
