AS-T10G2

5/5

Rp 3.090.000
sudah termasuk PPN 11%

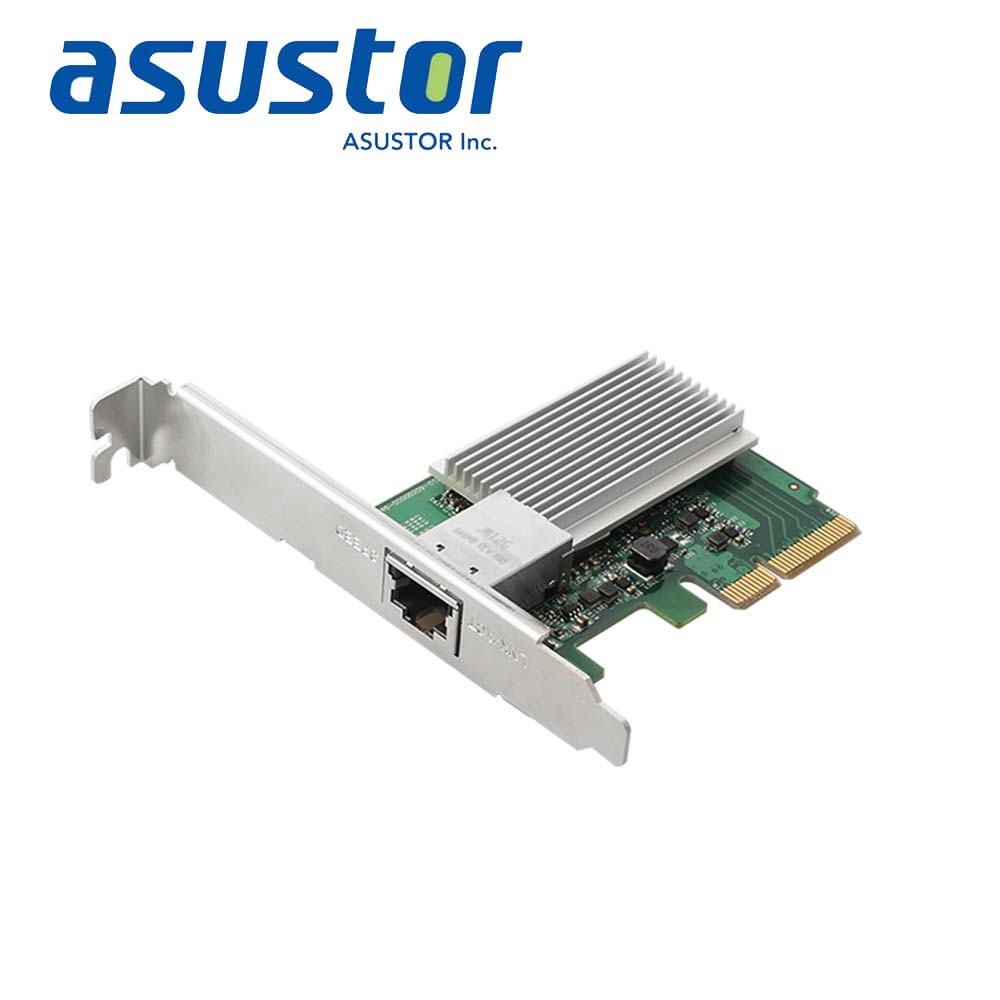

● AS-T10G, 10GBase-T (RJ45) PCI-E Network Adapter 2 brackets included, long and short. Special bracket for AS7008T/7010T needs to be purchased separately
● Appliance Model  : * for NAS: AS7112RDX/AS7116RDX/AS7012RD/AS7012RDX(Bracket included)AS7010T (Bracket to be purchased separately)* for PC/MAC/Linux (Bracket included)
● Dimensi : 82 (W) x 62 (D) mm
● Berat : 62 g

Anda dapat membeli di online store

Description

  • Includes an RJ45 port. Fast and easy networking without fiber.
  • Compatible with 10GbE, 5GbE, 2.5GbE, Gigabit and 100MbE speeds.
  • Compatible with ASUSTOR ADM (3.2.4 and above), Windows, MacOS, Linux and VMware ESXi.
10g_faster



10Gbps fast network performance

The AS-T10G is equipped with a 10-Gigabit RJ-45 port that delivers up to 10 times the performance than a typical Gigabit Ethernet connection. The AS-T10G is an affordable solution that is suitable for small and medium business as well as home users, breaking through traditional bottlenecks.

10g_faster


Excellent 10Gbps network performance

The AS-T10G provides superior network performance and latency compared with other 10-Gigabit NICs.

performance_read

Windows File Copy Read Performance

performance_read

Windows File Copy Write Performance

Test Environment PC1 & PC2: Win 10, i7-4790, 24 GB (19 GB RAM DISK), Intel 545 Series SSD 128GB, NETGEAR ProSafe XS708T, Tested RAID level: RAID 5

Complete Compatibility!

AS-T10G equipped with the AS40 series and AS70 enables enterprises and individuals to expand the networking capabilities of personal computers, workstations and servers to meet the needs of ever high data consumption. Supporting 10-Gigabit speeds while being backwards compatible with 5-Gigabit, 2.5-Gigabit, 1-Gigabit and 100-Megabit speeds. ASUSTOR ADM (3.2.4 and above), Windows, Linux, Mac OS and VMware ESXi, are all supported.

compatible_map

ASUSTOR NAS bracket for the AS7008T and AS7010T sold separately.

Now with RJ-45! More useful than ever!

With a standard RJ-45 port, the AS-T10G allows you to easily upgrade to a 10-Gigabit network using standard Ethernet cables instead expensive fiber cables.

easy_upgrade_10g
function_list

Hardware Specifications

  • Supported Standards:
    • IEEE 802.3ae 10GbE
    • IEEE 802.3x: Ethernet flow control
    • IEEE 802.2ad: Link Aggregation
    • IEEE 802.1Q: VLAN tagging
    • RFC2819 RMON MIB stats
  • Maximum speed: 10 Gbps
  • Transmission mode:Full Duplex
  • Interface: PCIe 2.0 x4
  • Bracket support: Full-height, Low-profile, ASUSTOR NAS bracket (Sold separately)
  • Operating temperature: 0-50°C
  • Non-operating temperatures: -40–85°C
  • Humidity: 5-95% relative humidity
  • Certifications: FCC, CE
  • Supported features:
    • Jumbo Frame 16KB
    • IP, TCP, UDP checksum offload
    • Supports 100MbE, 1GbE, 2.5GbE ,5GbE and 10GbE
  • Supported OS:
    • Windows 7 and above (32/64-bit)
    • Windows Server 2012 and above (32/64-bit)
    • Linux 2.6.x and above (32/64-bit)
    • MacOS 10.10 and above
    • VMware ESXi 5.1 and above, Microsoft Hyper-V, Linux KVM, Oracle VirtualBox
  • Supported devices: AS70 series with available PCIe, Mac Pro with available PCIe, IBM-Compatible PC with available PCIe.

    Size and Weight

    • Size: 82 (W) x 62 (D) mm
    • Weight: 62 g
