| Type | Automatic Document Feeder (ADF) |
| Image Sensor | CIS X 2 (Duplex) |
| Light Source | LED |
| Optical Resolution | 600 dpi |
| Hardware Resolution | 600 x 600 dpi |
| Scan Modes | Color: 48-bit input, 24-bit output |
| Grayscale: 16-bit input, 8-bit output |
| B/W: 1-bit |
| ADF Capacity | 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs) |
| 2. 30 sheets (Business Cards) |
| 3. Plastic Card, Max. thickness under 1.2 mm. |
| Note: Maximum ADF capacity varies, depending upon paper weight. |

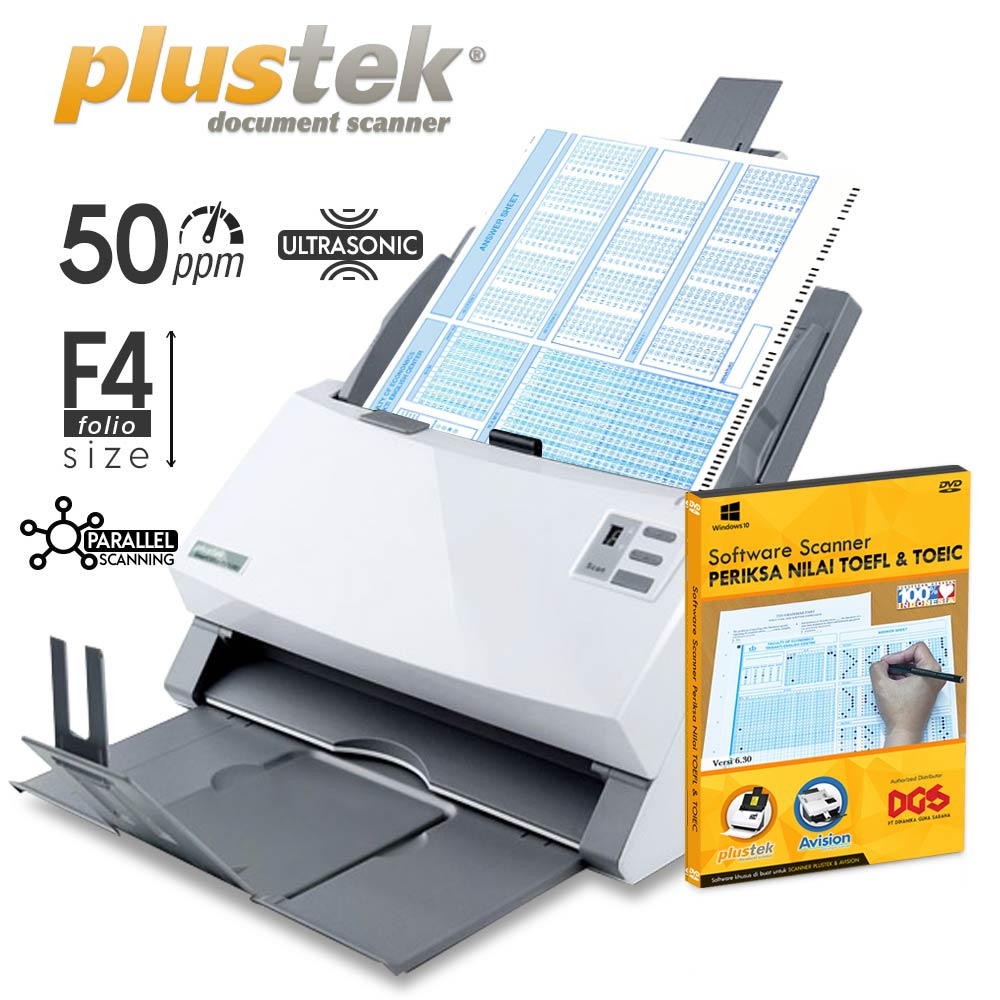

| Scanning Speed ( ADF ) | 50 ppm/ 100 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait) |
| 50 ppm/ 100 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait) |
| 45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Portrait) |
| 30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Portrait) |
| Note: Results may vary depending upon your scanning application, computer processor and system memory. |
| Scan Area (L x W) | Maximum: 216 x 5080 mm (8.5 “x 200”) |
| Minimum: 13.2 x 13.2 mm (0.52 “x 0.52”) |
| Scan: Kartu Nama, A5, Kuarto, Letter, A4, Folio (F4), Legal |
| Acceptable Paper Sizes (W x L) | Maximum: 216 x 5080 mm (8.5 “x 200”) |
| Minimum: 50.8 x 50.8 mm (2 “x 2”) |
| Acceptable Paper Weight (Thickness) | 40 to 220 g/㎡ (10 to 58 Lbs) |
| Daily Duty Scan ( Sheets ) | 6,000 |
| Roller Lifetime (Scans) | 300,000 |
| Pad Lifetime (Scans) | 100,000 |
| Action Button | 4 Buttons: Up, Down, Scan, Standby |
| 9 function keys are all customizable. |
| Power Supply | 24 Vdc/ 1.25 A |

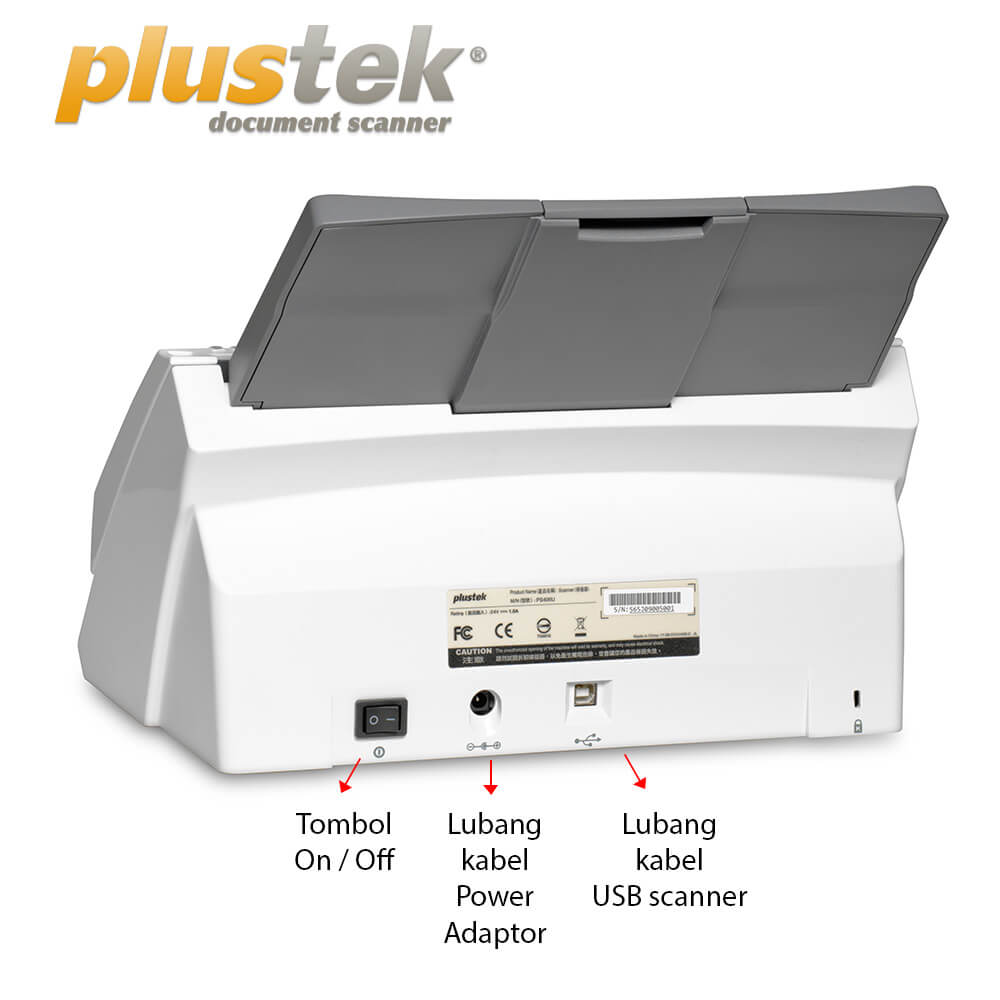

| Interface | USB 2.0 x 1, USB 2.0 (Host) x 1 |
| Net Weight | 2.7 Kgs (5.95 Lbs) |

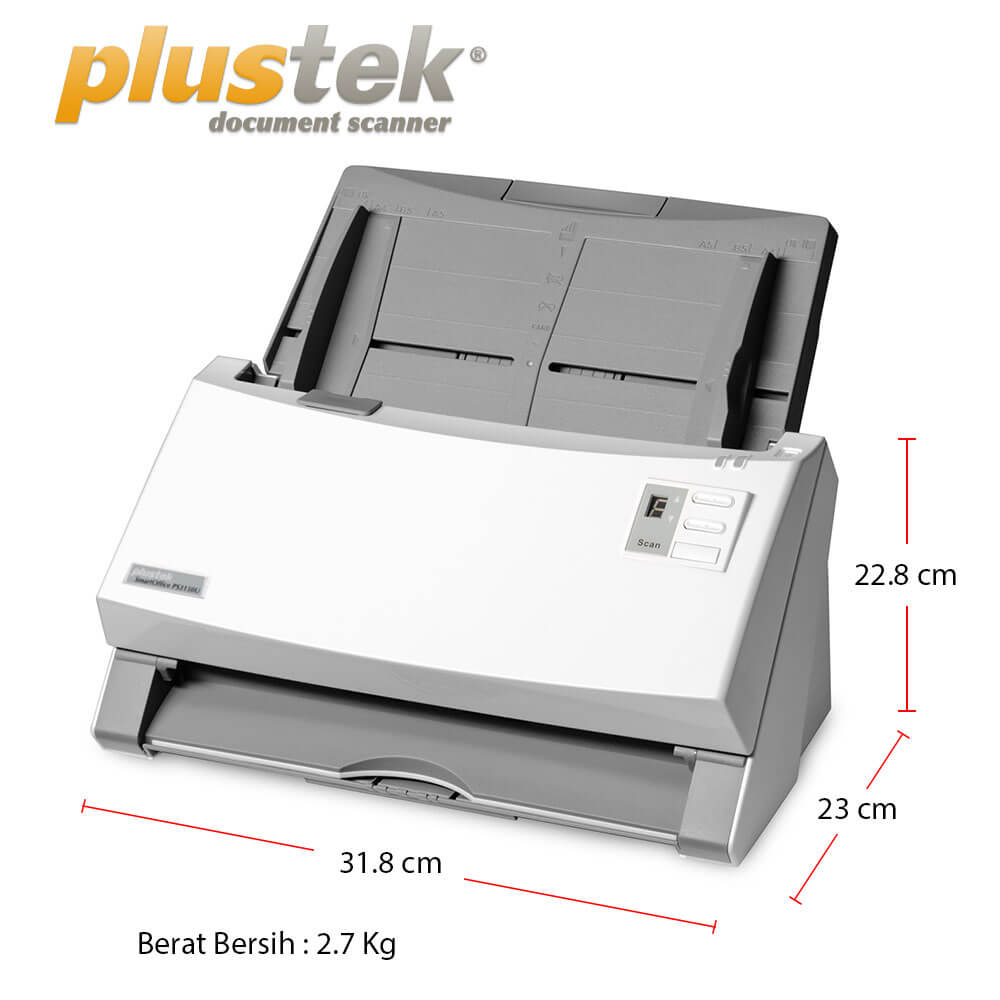

| Dimensions (L x W x H) | 318.7 x 230.7 x 228.3 mm (12.55 “x 9.08” x 8.99 “) |
| Protocol | TWAIN Compliant |
| OS | Windows XP / Vista / 7 / 8 / 10 / 11 |
| macOS 10.8.x/ 10.9.x/ 10.10.x/ 10.11.x/ 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x/ 11.x/ 12.x/ 13.x/ 14.x |
| Linux compatibility is only available for system integrators. Please contact [email protected] for more info. |
| Hardware Requirements | Windows and Mac |
| 2.0 GHz CPU processor or higher[1][2][3] |
| [1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher |
| [2]Support Mac INTEL and M1 based processor |
| [3]Compatibility is not available with PowerPC |
| 4 GB RAM minimum (Recommended: 8 GB or more) |
| 6 GB of hard-disk space for program installation |
| Display dimensions of 1024×768 or greater |
| Bundled Software | Plustek DocAction |
| Plustek DocTWAIN |
| Plustek MacAction |
| Plustek ICA |
| *Installation DVD only included software and driver for Windows. For Mac, please download from our website. |
| Built-in OCR | Plustek OCR (For Windows) (Powered by ABBYY® FineReader®) |
| Plustek DocOCR (For Mac) |
| *Installation DVD only included software and driver for Windows. For Mac, please download from our website. |
