Digitalsense

TL-D400S

5/5

Rp 6.900.000
sudah termasuk PPN 11%

● Expansion : SFF-8088 (or SFF-8644)
● HDD : 2.5″ / 3.5″ SATA II/ III or SSD x4
● Security Slot : Kensington security slot

Anda dapat membeli di online store

SKU EU-TL-400S Categories , , Tags , ,

Description

[vc_row][vc_column][vc_column_text]

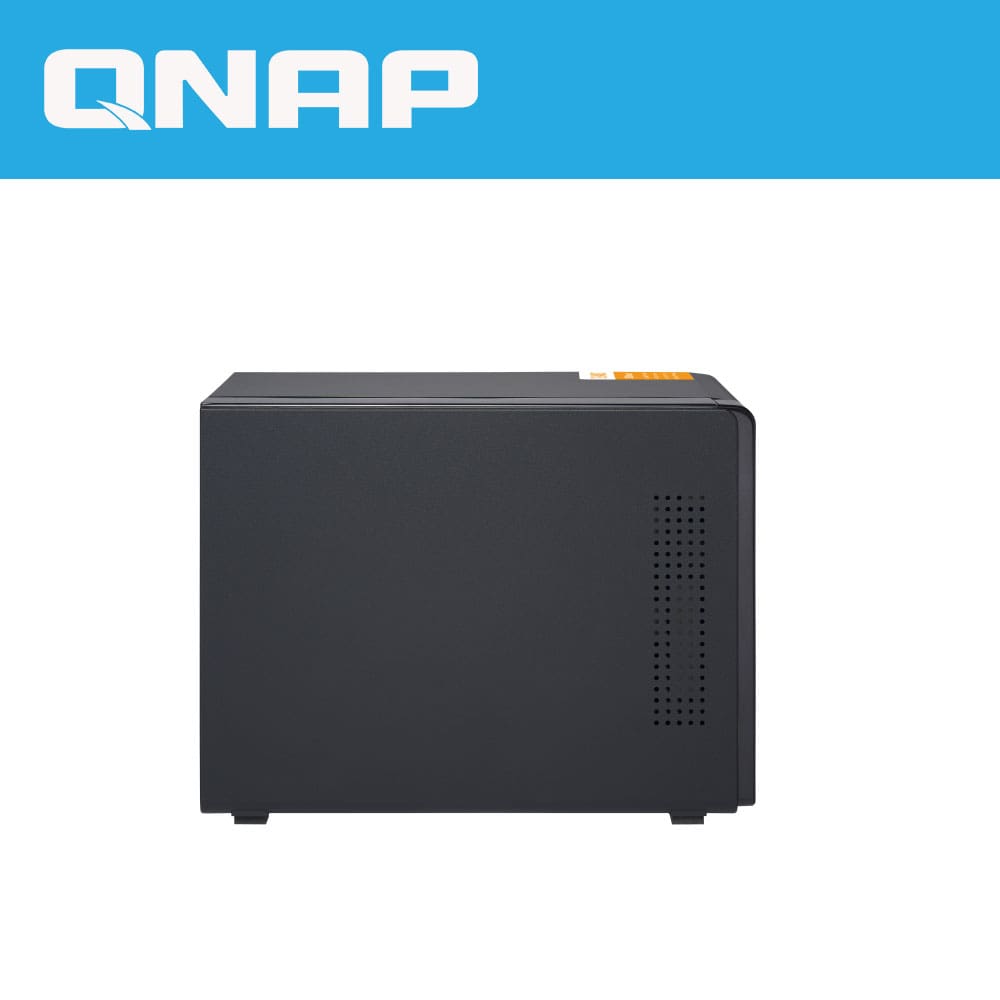

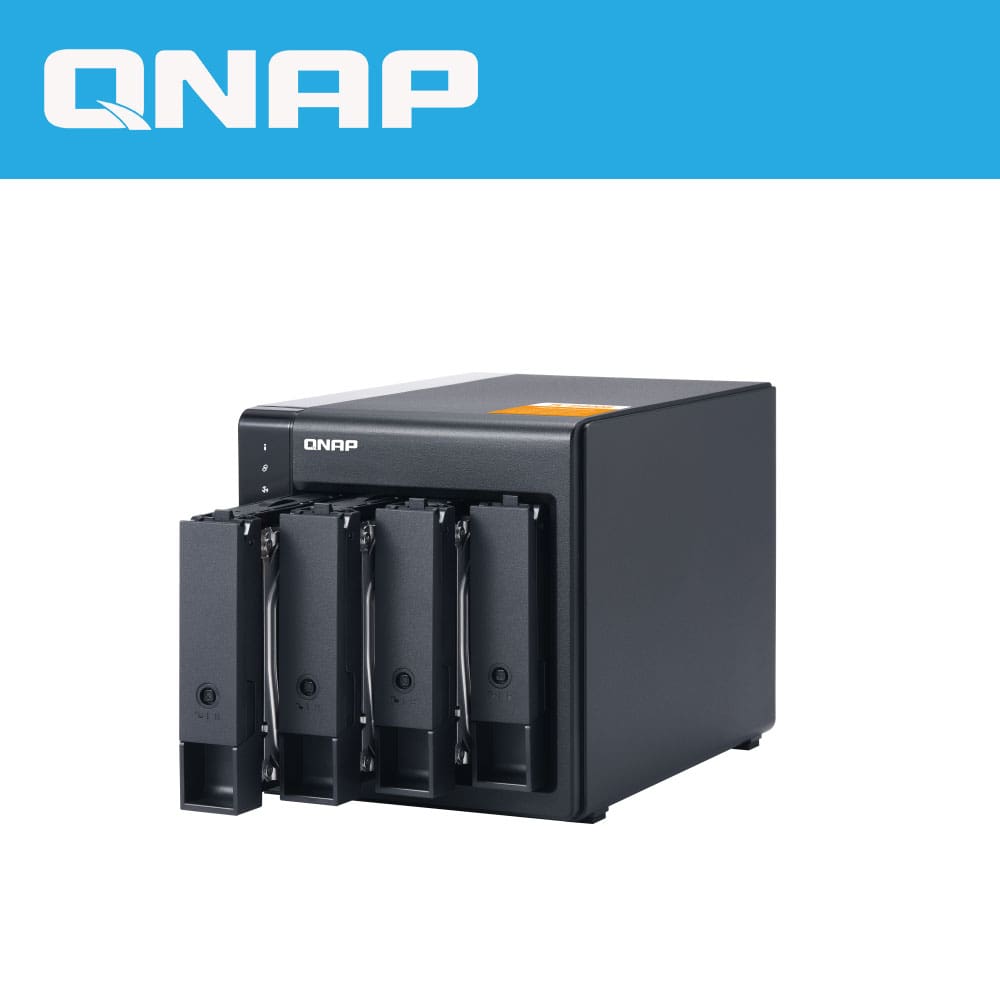

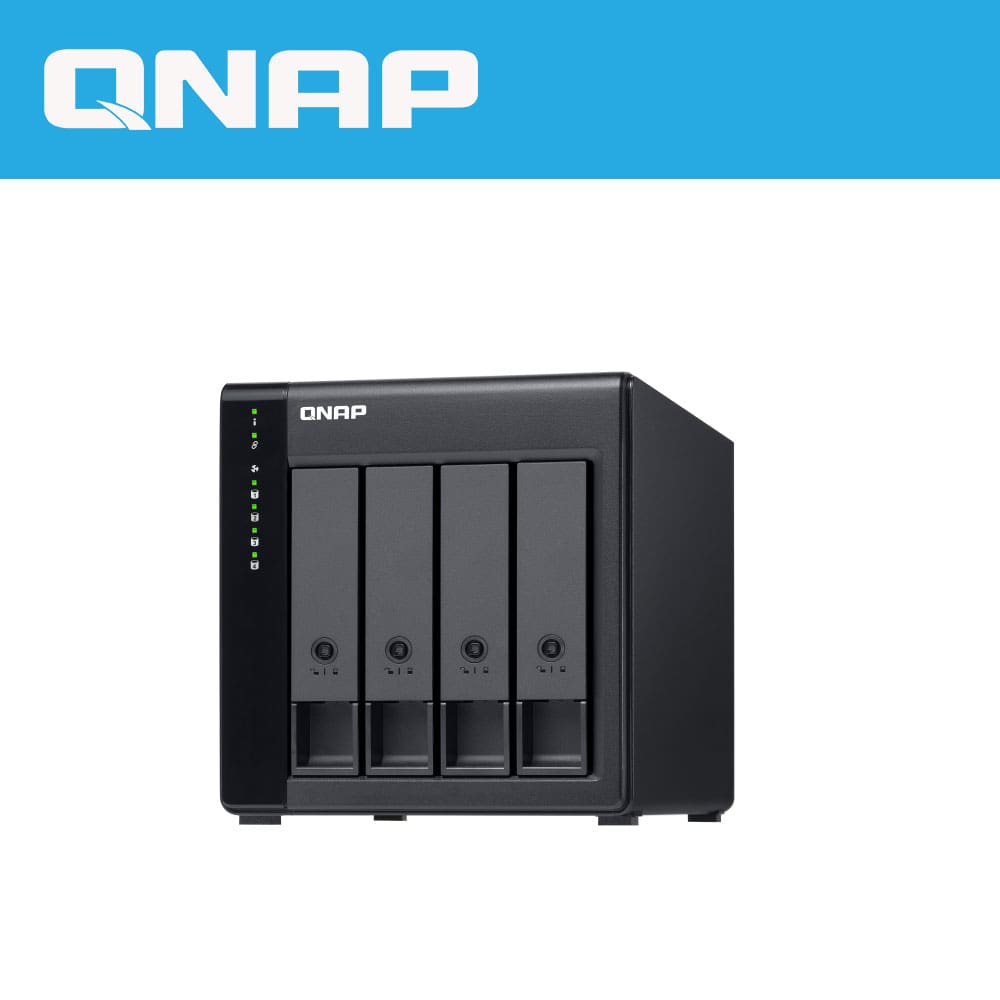

TL-D400S JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-D400S features four 3.5-inch SATA 6Gb/s drive bays and comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.

1. QNAP recommends following the standard procedure for connecting or disconnecting the TL-D400S. For more information, please see the TL-D400S user manual.
2. The TL-D400S can only be used as an individual storage pool or volume on the NAS. Its storage pool or volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-D400S.
3. The TL-D400S only supports QNAP NAS running on QTS 4.4.2 (or above) or QuTS hero operating system.



High-performing TL SATA JBOD

The TL SATA JBOD supports multi-lane SATA 6Gb/s transfer, and each SATA lane directly connects to a single SATA drive to help improve performance. With the 1-1 high-speed channel, the TL SATA JBOD delivers excellent transfer performance.

Note: The SFF ports and drive slots order: SFF port 1 to HDD slot 1-4, SFF port 2 to HDD slot 5-8, SFF port 3 to HDD slot 9-12, SFF port 4 to SDD slot 1-4 (TL-D1600S)

Flexible Storage Configuration and Management

The TL-D400S provides software-controlled storage configuration for greater management flexibility. You can configure RAID and monitor JBOD enclosure and disk health with Storage & Snapshots when connected to a QTS or QuTS hero NAS, or with the QNAP JBOD Manager utility when connected to a computer.

  • Use the Storage & Snapshots Manager in QTS or QuTS hero to configure the TL-D400S as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-D400S, you can easily expand storage capacity.

  • The QNAP JBOD Manager is a desktop utility for monitoring the TL-D400S on Windows® and Ubuntu® computers. You can quickly obtain disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates.

What you need to know

You can connect your TL-D400S to Windows® and Ubuntu® computers through SFF-8088 (or SFF-8644) high-speed cable and use built-in utility to manage RAID configuration.

Note:
1. QXP series PCIe cards do not support Mac Pro.
2. If there are any unexpected boot failures during QXP PCIe cards installation on the host, please check with the host manufacturing company for any new BIOS updates. Alternatively, you can try disabling the boot from the PCIe slot function or disable the external graphics card option.

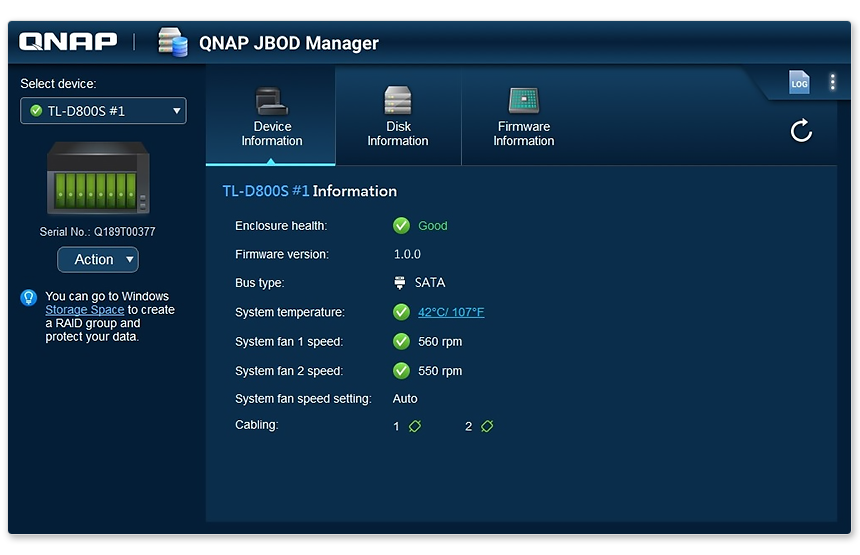

Intelligently Monitor JBOD Enclosure Status on PC and Servers with QNAP JBOD Manager

The QNAP JBOD Manager is a desktop utility for monitoring the TL-D400S on Windows® and Ubuntu® computers. You can quickly obtain the disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates. All device events are recorded, and will send desktop notifications when a system alert occurs.

Notes:
1. You can set up new software RAID groups in [Windows Storage Spaces] in Windows 8 (or later versions).
2. Windows Server 2012 R2 (or later version) users can set up new software RAID groups in [Server Manager].
3. Ubuntu 18.04 users need to pass commands into [mdadm] to set up new software RAID groups.
4. Does not support macOS.

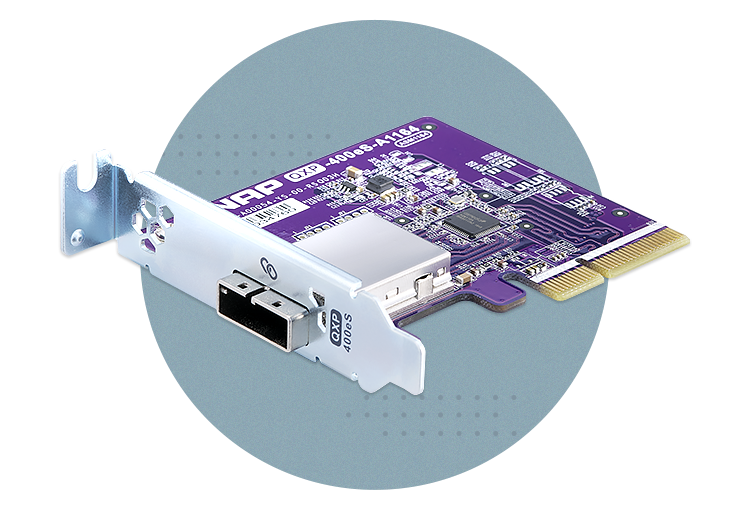

Flexibly Expand Connectivity with QXP PCIe Cards

Install an exclusive QXP PCIe card onto your QNAP NAS, Windows® or Ubuntu® PC to connect the JBOD enclosure via SFF-8088 (or SFF-8644) cable , for easy and flexible storage expansion.

Note:
1. The TL-D400S package includes one QXP-400eS-A1164 card (can be purchased additionally) and one 1M SFF-8088 to SFF-8088 cable.
2. A SATA JBOD storage enclosure can only connect to one NAS. Users can only use QNAP JBOD Manager to view statuses of devices and disks installed with QNAP expansion cards and JBODs. Users can only create single storage expansions when the QXP PCIe card is not connected to a TL SATA JBOD enclosure.
3. TL SATA JBOD storage enclosure can install different QXP PCIe cards. For example, one NAS can be matched with multiple QXP PCIe cards to connect to TL SATA JBOD storage enclosure or users can use one QXP-800eS to expand two TL-D400S (there are no quantity limits except for restrictions mentioned in the previous note).
4. The TL SATA JBOD and QXP SATA expansion card support at most 1 meter (3.28 feet) long cable.
5. Users of the TVS-871U-RP, TVS-1271U-RP, and x80 series NAS must update their BIOS to the minimum BIOS version. If not, unexpected boot failures might occur.

How to update a BIOSView the unsupported NAS list

TL-D400S Offers Better Performance Than Other USB and eSATA JBOD Solutions

The TL-D400S features SFF-8088 (or SFF-8644) connectivity and multiple SATA 6Gb/s bays. This provides better sequential read performance and faster data transfer speeds than existing USB and eSATA expansion enclosures, while also being a more economical option compared to a QNAP REXP SAS enclosure.



Extend hardware warranty up to 5 years

The TL-D400S is backed by a 2-year warranty at no additional costs. You can purchase a warranty extension that extends your warranty coverage up to 5 years.

SPESIFIKASI TL-D400S

Drive Bay4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Audio Alert On/Off Switch
Form FactorTower

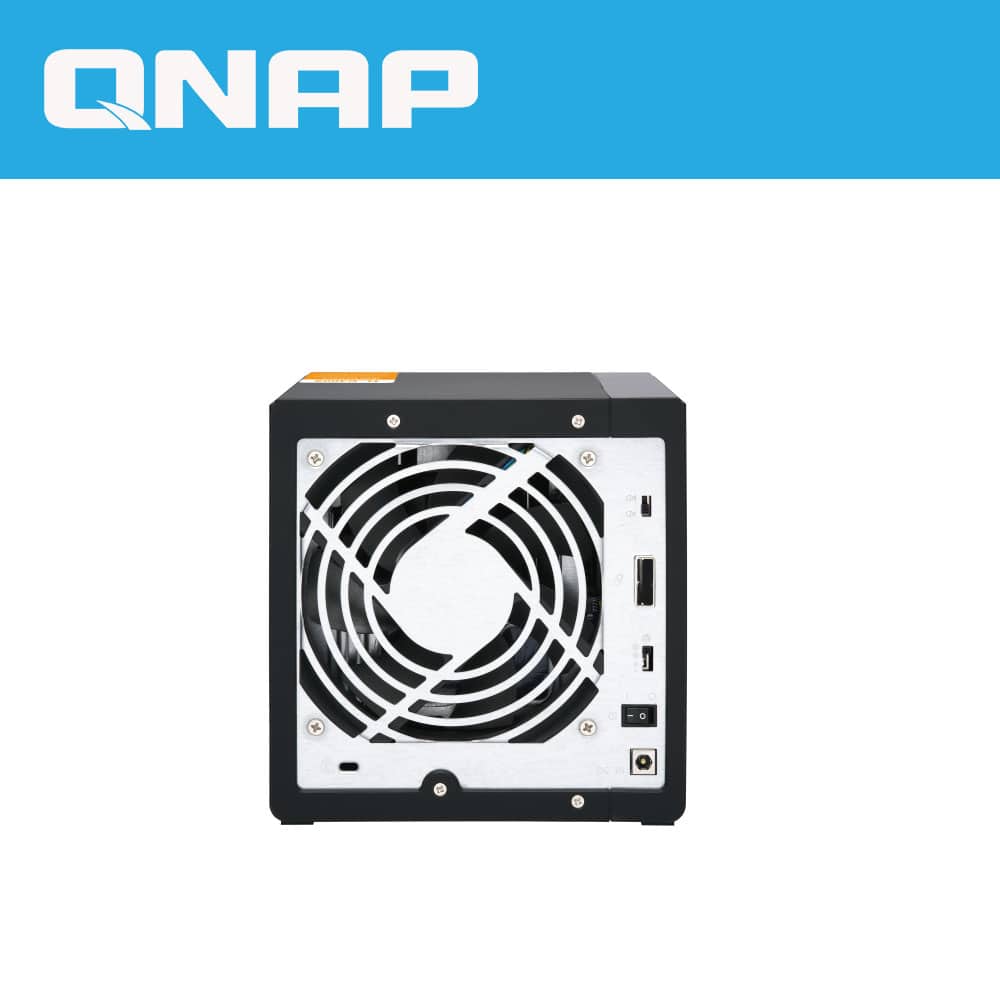

Host Interface1 x SFF-8088
LED IndicatorsHDD 1-4, Status, Link, Fan error
ButtonsPower switch
Dimensions (HxWxD)168.5 × 160.2 × 219 mm
Weight (Net)3.66 kg
Max. number of HDDs/SSDs supported4
Hard Drive Type3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Operating temperature0 – 40 °C (32°F – 104°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit65W adapter, 100 – 240V
Power Consumption: Operating Mode, Typical22.985 W

Tested fully polulated with Seagate ST6000NM0024 hard drives.
Fan Mode Switch (Auto, high, medium, low)
Fan1 x 120mm, 12VDC
Sound Level20.1 db(A)
System WarningBuzzer
Kensington Security Slot
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
