Rp 22.600.000
sudah termasuk PPN 11%

Untuk Pemesanan Konfirmasi Terlebih Dahulu
● Expansion : USB 3.0 (USB3.1 Gen-1) Type B
● HDD : 2.5″ / 3.5″ SATA II/ III or SSD x4
● Security Slot : Kensington security slot

Anda dapat membeli di online store

SKU TL-R1200S-RP Categories , Tags , , , ,



Intelligently Monitor JBOD Enclosure Status on PC and Servers with QNAP JBOD Manager

The QNAP JBOD Manager is a desktop utility for monitoring the TL-R1200S-RP on Windows® and Ubuntu® computers. You can quickly obtain the disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates. All device events are recorded, and will send desktop notifications when a system alert occurs.

1. You can set up new software RAID groups in [Windows Storage Spaces] in Windows 8 (or later versions).
2. Windows Server 2012 R2 (or later version) users can set up new software RAID groups in [Server Manager].
3. Ubuntu 18.04 users need to pass commands into [mdadm] to set up new software RAID groups.
4. Does not support macOS.

Flexibly Expand Connectivity with QXP PCIe Cards

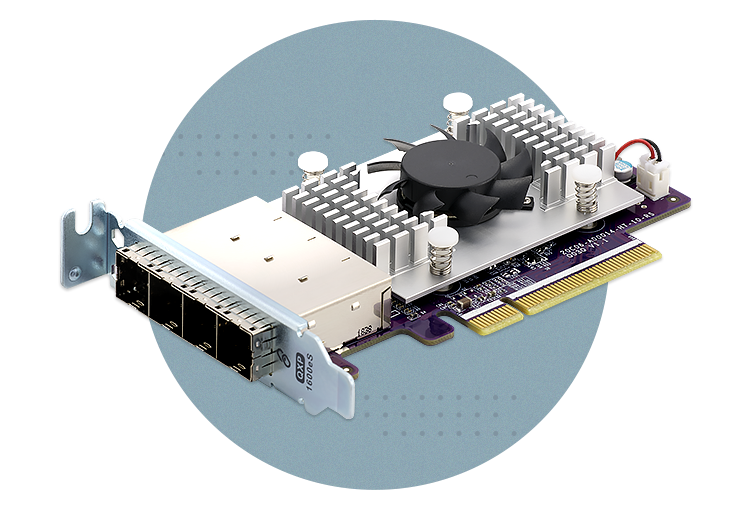

Install an exclusive QXP PCIe card onto your QNAP NAS, Windows® or Ubuntu® PC and servers to connect the JBOD enclosure via SFF-8088 (or SFF-8644) cable, for easy and flexible storage expansion.

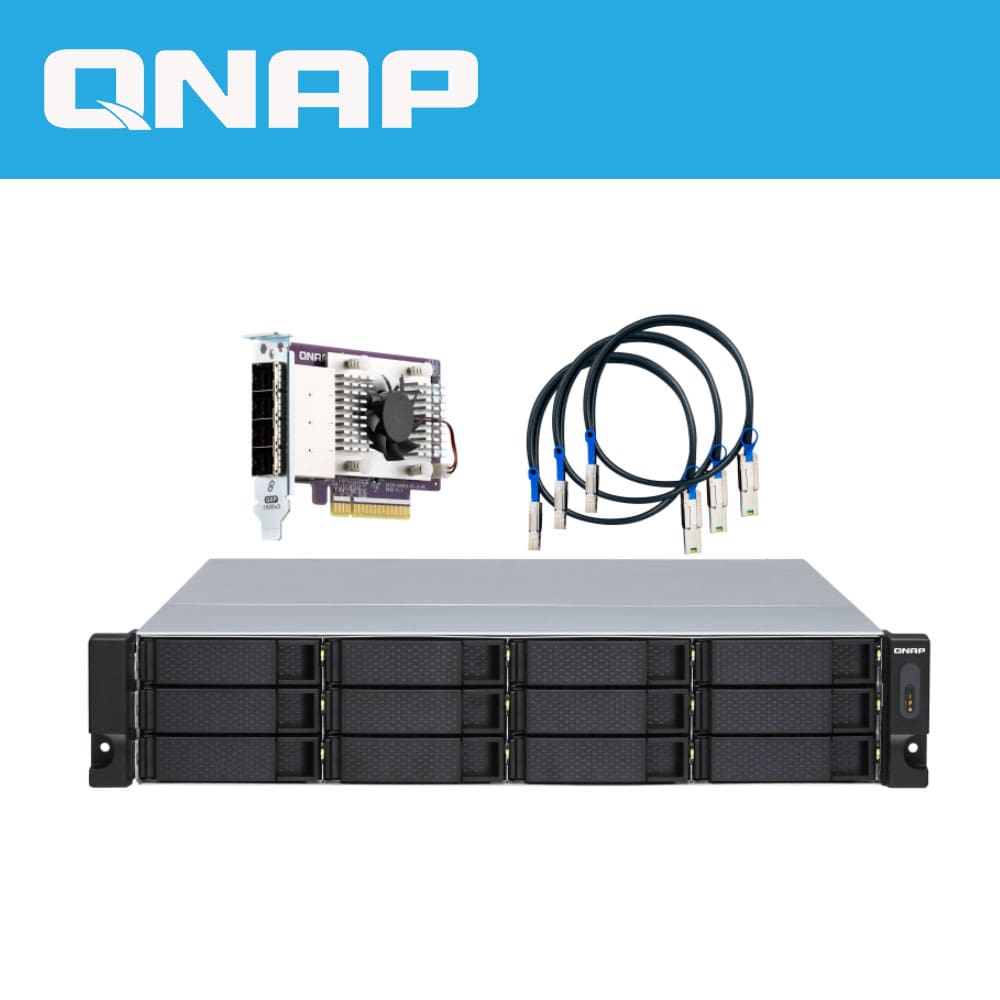

1. The TL-R1200S-RP package includes one QXP-1600eS card (can be purchased additionally) and four 1M SFF-8088 to SFF-8644 cables.
2. A SATA JBOD storage enclosure can only connect to one NAS. Users can only use QNAP JBOD Manager to view statuses of devices and disks installed with QNAP expansion cards and JBODs. Users can only create single storage expansions when the QXP PCIe card is not connected to a TL SATA JBOD enclosure.
3. TL SATA JBOD storage enclosure can install different QXP PCIe cards. For example, one NAS can be matched with multiple QXP PCIe cards to connect to TL SATA JBOD storage enclosure or users can use one QXP-800eS to expand two TL-D400S (there are no quantity limits except for restrictions mentioned in the previous note).
4. The TL SATA JBOD and QXP SATA expansion card support at most 1 meter (3.28 feet) long cable.
5. The QXP-1600eS PCIe SATA expansion card included with the TL-D1600S and TL-R1200S-RP JBOD is incompatible with 1U 4-bay NAS with PCIe slots and the following desktop models. For more information, and to view a full list of compatible NAS models, visit the Storage Expansion Compatibility and Compatibility List.
  • x82S: TVS-882ST3, TVS-882ST2
  • x71: TVS-871T, TVS-871, TVS-671, TVS-471
  • x70: TS-870 Pro, TS-670 Pro, TS-470 Pro, TVS-870, TVS-670, TVS-470, TS-870, TS-670, TS-470
  • x63: TVS-863+, TVS-863, TVS-663, TVS-463, TS-563
  • x31P/x31X: TS-831X, TS-531X, TS-531P
  • x32X: TS-832X
6. Users of the TVS-871U-RP, TVS-1271U-RP, and x80 series NAS must update their BIOS to the minimum BIOS version. If not, unexpected boot failures might occur.

How to update a BIOSView the unsupported NAS list





  • Download Datasheet
  • Download Datasheet
  • Download Datasheet
Drive Bay12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Audio Alert On/Off Switch
Form Factor2U Rackmount
Host Interface3 x SFF-8088
LED IndicatorsHDD 1-12, Status, Link, Fan error
ButtonsPower switch
Dimensions (HxWxD)88.6 × 482 × 562.5 mm
Weight (Net)9.49 kg
Weight (Gross)12.77 kg
Max. number of HDDs/SSDs supported12
Hard Drive Type3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Operating temperature0 – 40 °C (32°F – 104°F)
Storage Temperature-20 – 70°C (-4°F – 158°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit250W(x2) PSU, 100 – 240V
Power Consumption: Operating Mode, Typical

73.7 W

Tested fully polulated with Seagate ST6000NM0024 hard drives.
Fan Mode Switch (Auto, high, medium, low)
Fan2 x 70mm, 12VDC
Sound Level33.7 db(A)
System WarningBuzzer
Kensington Security Slot
