SOLUSI ARSIP DOKUMEN DIGITAL ANDA

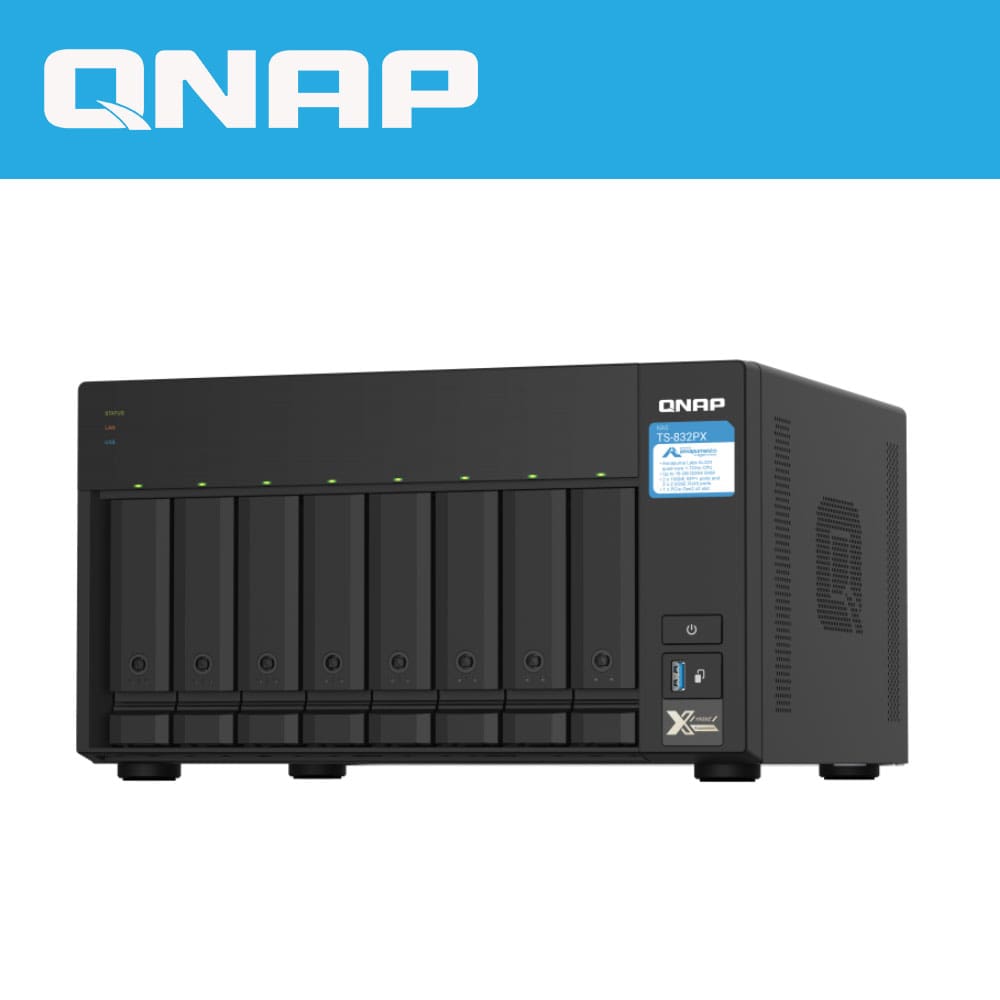

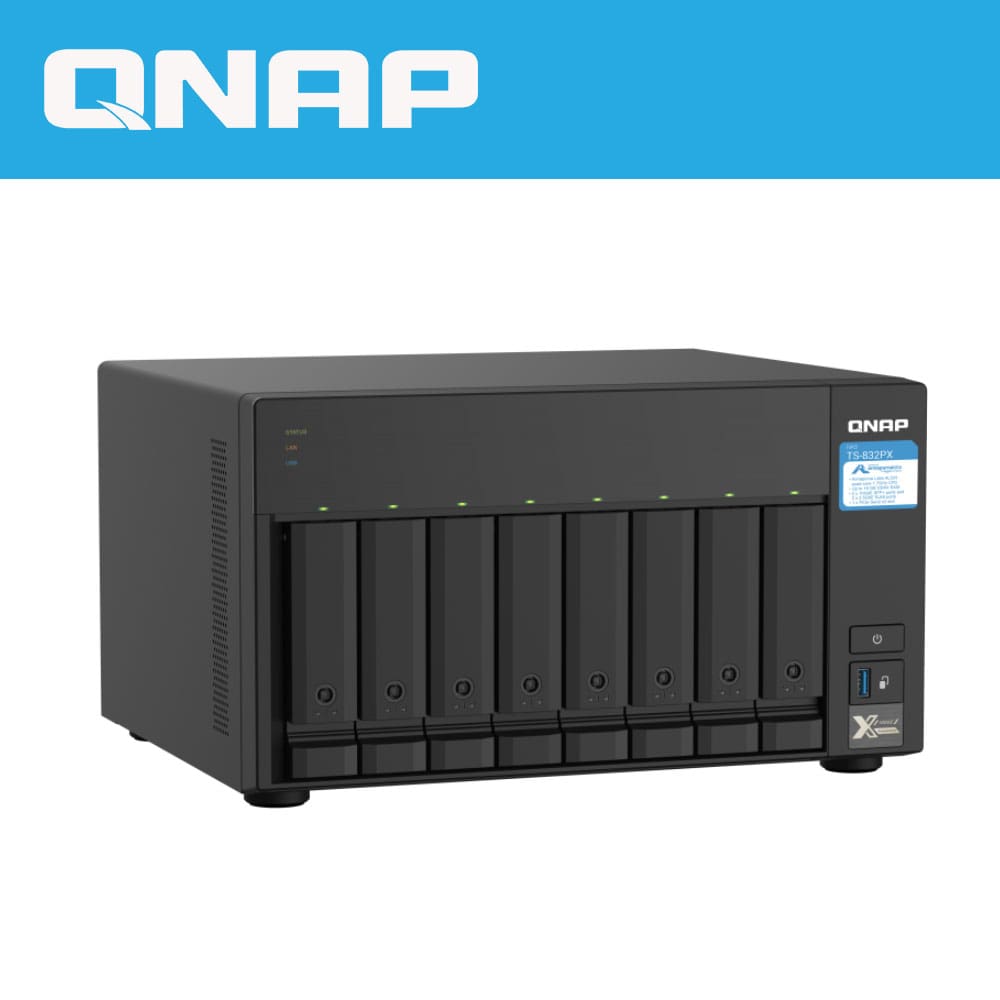

TS-832PX-4G

Rp 18.490.000
sudah termasuk PPn 10%
Garansi produk 2 tahun

Ready Stock!

Lihat Seluruh Produk: , .

TS-832PX-4G

Rp 18.490.000
sudah termasuk PPn 10%
Garansi produk 2 tahun
 Ready Stock!

Untuk Pemesanan Konfirmasi Terlebih Dahulu
● Processor : AL324 64-bit quad-core 1.7GHz, 4GB DDR4 SODIMM RAM (1 x 4GB, max 16GB)
● Memory : 8 x 3.5″/ 2.5″ drive slots, 2 x 10GbE SFP+ LAN, 2 x 2.5GbE LAN, 3 x USB 3.2 Gen1, 1 x PCIe 2.0 x2 slot,
● Slot Bay : 8 x 3.5-inch SATA 6Gb/s, 3Gb/s

SKU: QNAP-TS-832PX-4G. Categories: , . Tags: , , , , .
Anda dapat membeli produk kami di ONLINE STORE

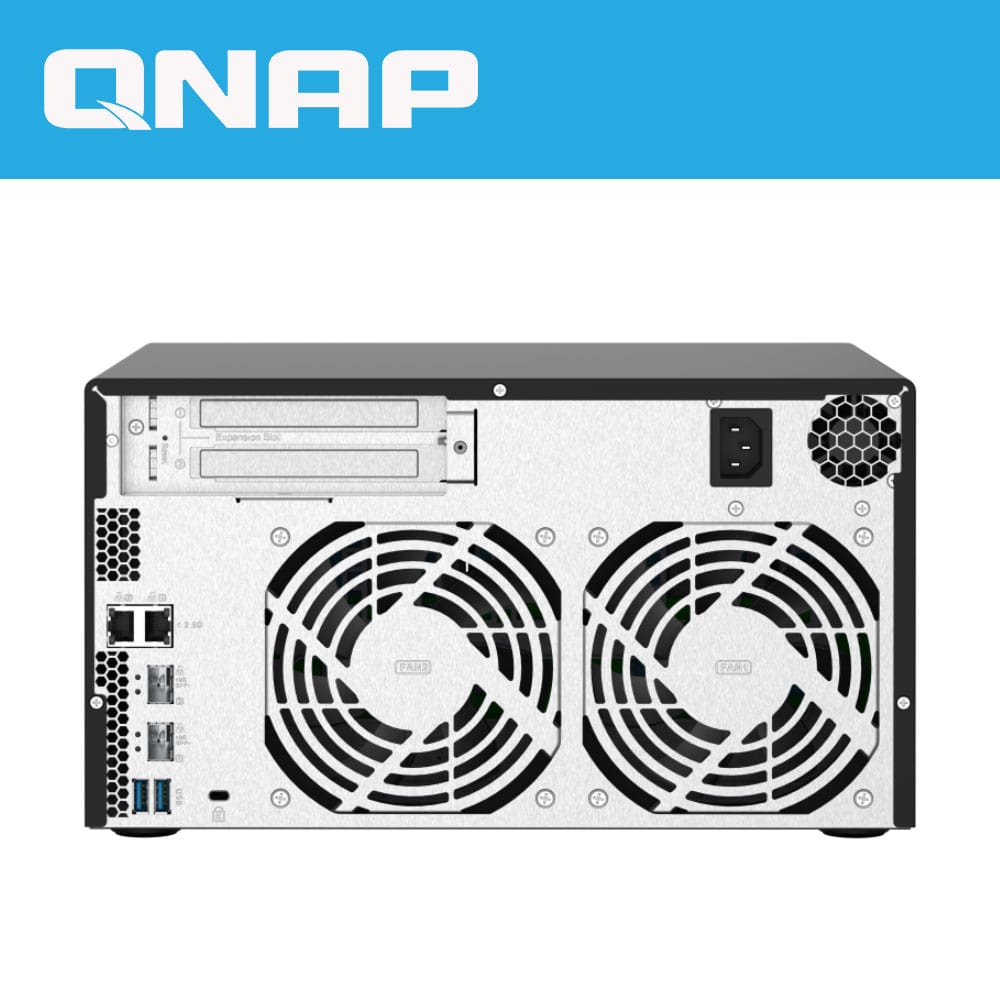

High-speed 10GbE and 2.5GbE connectivity

The TS-832PX includes two 10GbE SFP+ and two 2.5GbE LAN RJ45 ports, providing out-of-the-box support for high-speed networking and supporting Port Trunking and Failover to reinforce your network infrastructure. QNAP also provide many other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches and network adapters, allowing you to build a budget-friendly high-speed network environment.


Extend NAS Functionality with a PCIe Card

With a PCIe Gen 2.0 slot, the TS-832PX provides flexibility in extending NAS functionality and potential applications. To optimize system performance, install a QNAP QM2 card for M.2 SATA/NVMe SSD caching/10GbE connectivity and use with Qtier for optimal system performance. You can also use a QNAP Wi-Fi 6 (802.11AX) network card to create a wireless environment. Additional options include QXG 5GbE/2.5GbE network adapter cards and USB 3.2 Gen 2 (10Gbps) cards. All these options ensure that the TS-832PX can be upgraded to fit future requirements.


Secure remote access to your QNAP NAS

Use myQNAPcloud Link to access, share, download, and manage files stored on an HQ-based NAS via the Internet. QNAP NAS also supports VPN services for remote workers to access the NAS and resources on a private network from the Internet. You can also use QVPN Device Client powered by QNAP’s proprietary QBelt protocol to easily connect to your TS-832PX and use measurement tools to know the speed of your VPN connections and connection history.




SPESIFIKASI TS-832PX-4G

CPUAnnapurnaLabs Alpine AL324 ARM® Cortex-A57 quad-core 1.7GHz processor
CPU Architecture64-bit ARM
Floating Point Unit
Encryption Engine
System Memory4 GB SODIMM DDR4(1 x 4 GB)
Maximum Memory16 GB (1 x 16 GB)
Memory Slot1 x SO-DIMM DDR4
Flash Memory512 MB (Dual boot OS protection)
Drive Bay8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 SSD SlotOptional via a PCIe adapter
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M)2 (also support 10M)
10 Gigabit Ethernet Port2 x 10GbE SFP+
Wake on LAN (WOL)

Only the 2.5GbE port
Jumbo Frame
PCIe Slot1
Slot 1: PCIe Gen 2 x2

PCIe bandwidth limitations will restrict the NAS 10GbE performance.
USB 3.2 Gen 1 port3
Form FactorTower
LED IndicatorsSystem Status, LAN, USB, HDD1~8
ButtonsPower, Reset, USB Copy
Dimensions (HxWxD)188.2 × 329.3 × 280.8 mm
Weight (Net)6.38 kg
Weight (Gross)8.61 kg
Operating temperature0 – 40 °C (32°F – 104°F)
Storage Temperature-20 – 70°C (-4°F – 158°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit250W, 100-240V AC, 50/60Hz, 3.5A
Power Consumption: HDD Sleep Mode27.949 W
Power Consumption: Operating Mode, Typical50.858 W

Tested with drives fully populated.
FanSystem fan: 2 x 120mm, 12VDC
CPU fan: 1 x 60mm
Sound Level19.6 db(A)
System WarningVoice prompts or Buzzer
Kensington Security Slot


Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

CPU Intel® Core™ i3-8100T 4-core 3.1 GHz Processor
CPU Architecture 64-bit x86
Graphic Processors Intel® UHD Graphics 630
Floating Point Unit
Encryption Engine (AES-NI)
Hardware-accelerated Transcoding
System Memory 8 GB SODIMM DDR4 (2 x 4 GB)
Maximum Memory 32 GB ( 2 x 16 GB)
Memory Slot 2 x SO-DIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 SSD Slot 2 x M.2 2280 PCIe Gen3 x2 slots
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45) 2
5 Gigabit Ethernet Port 1 x 5GbE(5G/2.5G/1G/100M)
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen 3 x16 (CPU)
Slot 2: PCIe Gen 3 x4 (PCH)
USB 3.0 port 1
USB 3.1 Gen 2 (10Gbps) Port 2 x Type-C USB 3.1 Gen2 5V/3A 10Gbps
2 x Type-A USB 3.1 Gen2 5V/1A 10Gbps
IR Sensor (QNAP RM-IR004 & MCE)
HDMI Output 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)
Audio Input 1 x 3.5mm microphone input jacks
Audio Output 1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
Form Factor Tower
LED Indicators HDD 1-8, Status, LAN, USB port, M.2 port
LCD Display/ Button
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 188.2 × 329.3 × 279.6 mm
Weight (Net) 7.06 kg
Weight (Gross) 9.19 kg
Operating temperature 0 – 40 °C (32°F – 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W, 100-240V
Power Consumption: HDD Sleep Mode 41.47 W
Power Consumption: Operating Mode, Typical 65.03 W
With WD10EFRX drives fully populated
Fan System fan: 2 x 120mm, 12VDC
CPU fan: 2 x 60mm blower fan
Sound Level 24.2 db(A)
System Warning Voice prompts or Buzzer
Kensington Security Slot
