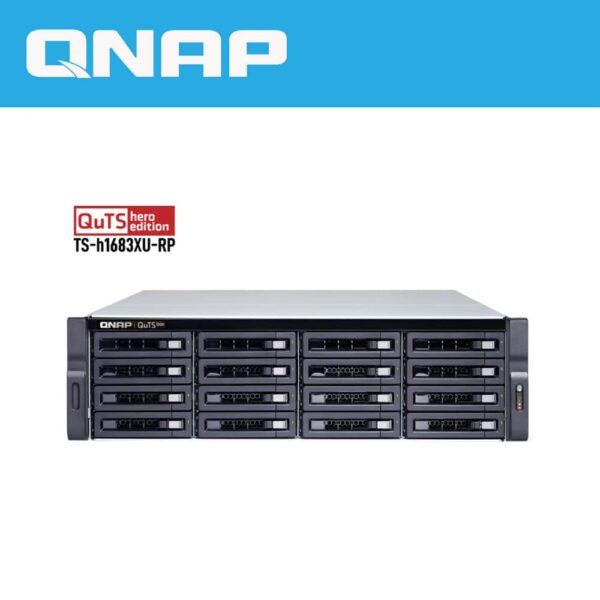

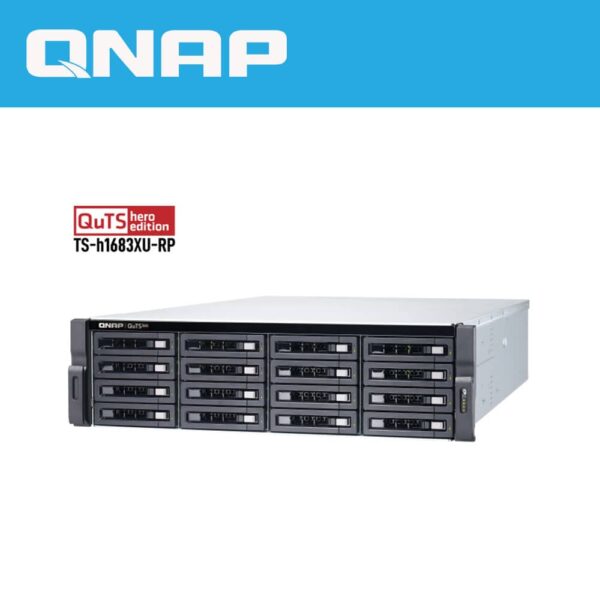

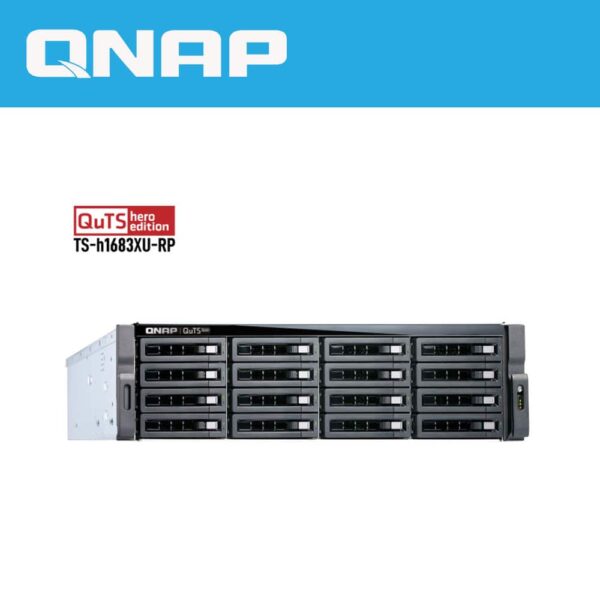

The QuTS hero NAS TS-h1683XU-RP is powered by an Intel® Xeon® E processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory to deliver server-grade performance with dependable reliability. Running the ZFS-based QuTS hero operating system, the TS-h1683XU-RP supports near-limitless snapshots, real-time SnapSync, block-level inline data deduplication, and inline data compression. The TS-h1683XU-RP helps your business achieve reliable service-level agreement performance, whether as a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.
[vc_empty_space height=”50px”]
[vc_empty_space height=”50px”]
Intel® Xeon® E processors deliver extraordinary performance
Powered by an Intel® Xeon® E-2236 6 cores/12 threads 3.4 GHz processor (Burst up to 4.8 GHz), the TS-h1683XU-RP has enormous processing power to drive virtual machine performance. Combined with 128 GB DDR4 ECC memory and a redundant power supply, the TS-h1683XU-RP delivers cost-effective server-grade performance for complex multitasking and dependable reliability in enterprise IT environments.
[vc_empty_space height=”30px”]
[vc_empty_space height=”50px”]
10GbE connectivity for high-speed data transfer
The TS-h1683XU-RP provides four Gigabit RJ45 ports, and also supports 10GbE connectivity with a pre-installed dual-port 10GBASE-T network expansion card and a dual-port 10GbE SFP+ SmartNIC to satisfy bandwidth-demanding applications (including virtualization, large file sharing, and high-speed backup and recovery). QNAP also offers numerous options of managed and unmanaged 10GbE switches with 10GbE SFP+/RJ45 and Multi-Gigabit NBASE-T™ support, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
Learn More:QNAP 10GbE switches,QNAP 10GbE Solutions
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Learn More:QuTS hero operating system,Why QNAP business NAS uses ZFS?
[vc_empty_space height=”30px”]
[vc_empty_space height=”50px”]
SPESIFIKASI
TS-h1683XU-RP-E2236-128G
| CPU | Intel® Xeon® E-2236 6-core 3.4 GHz processor (burst up to 4.8 GHz) |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| System Memory | 128 GB UDIMM DDR4 ECC (4 x 32GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x Long-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |

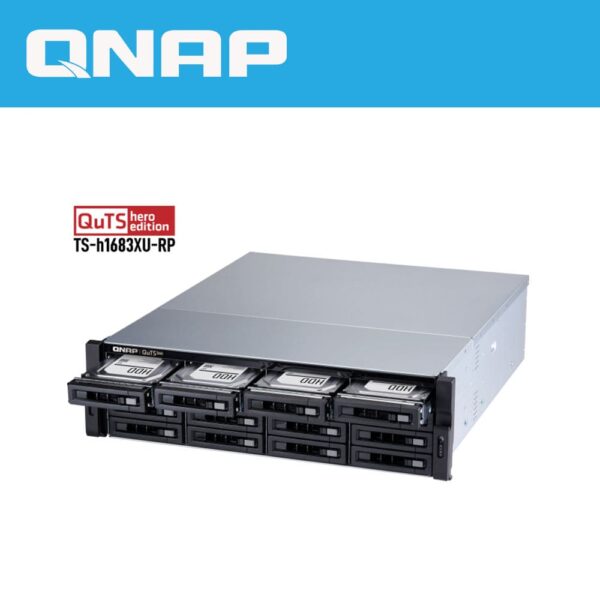

| Drive Bay | 16 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 4 |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 4 Slot 1: PCIe Gen 2 x4 (PCH) Slot 2: PCIe Gen 3 x8 (CPU) Slot 3: PCIe Gen 3 x4 (CPU) Slot 4: PCIe Gen 3 x4 (CPU) Slot 2 and slot 4 are preinstalled with 10GbE network adapters.
|
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C USB 3.2 Gen 2 10Gbps 4 x Type-A USB 3.2 Gen 2 10Gbps |

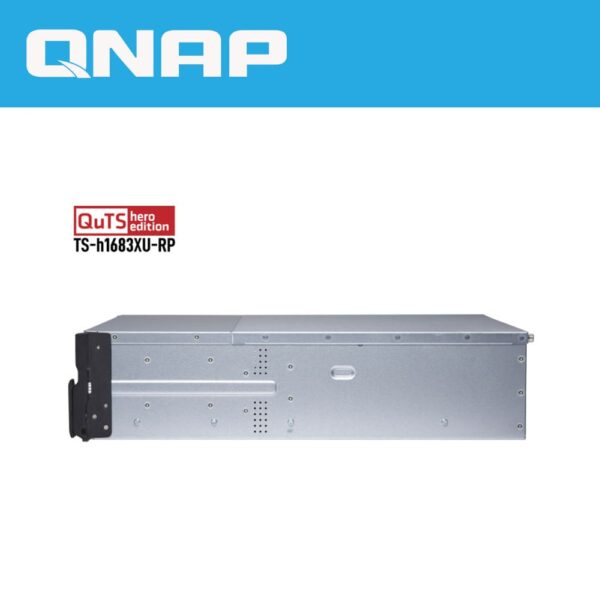

| Form Factor | 3U Rackmount |
| LED Indicators | HDD 1-16, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 130 × 481 × 573.5 mm |
| Weight (Net) | 13.76 kg |
| Weight (Gross) | 21.79 kg |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |

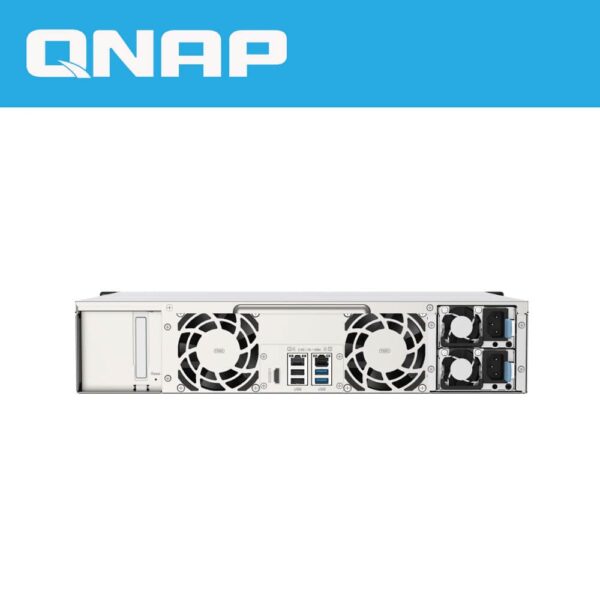

| Power Supply Unit | 500W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 130.43 W
Tested with drives fully populated.
|
| Fan | System fan: 4 x 92mm, 12VDC |
| Sound Level | 53 db(A) |
| System Warning | Buzzer |
[vc_empty_space height=”30px”]
[vc_empty_space height=”50px”]
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
